Non Heat Treatable Nickel Chromium Iron Super Nickel Alloy Inconel 625 Wire
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Ni Co Mn | Nickel(Min) | 58% |
|---|---|---|---|
| Thermal Conductivity | 9.8 W/m*℃ | Curie Point | -319℉ (-195℃) |
| Density | 8.44 G/cm3 | Yield Strength | 479.2-528.8 MPA |
| Condition | Hard / Soft | Sureface | Bright,Oxided |
| Delivery Time | 7-50 Days | Tensile Strength | 1276-1034 MPA |
| Melting Point | 1350℃ | Elongation | 34-54% |
| Highlight | Inconel 625 Wire,Nickel Alloy Inconel 625 Wire,58% Nickel Inconel Alloy |
||
Product Description

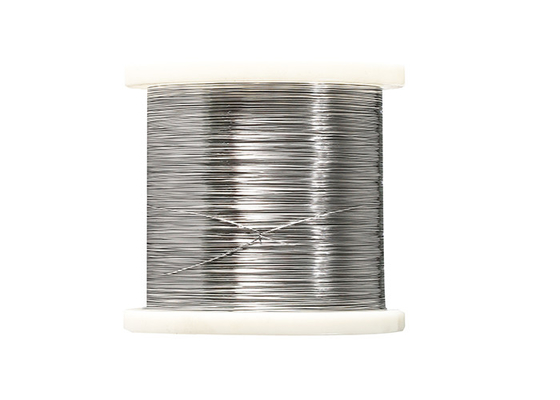

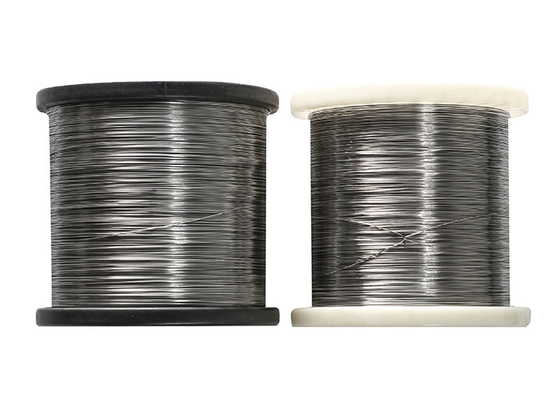

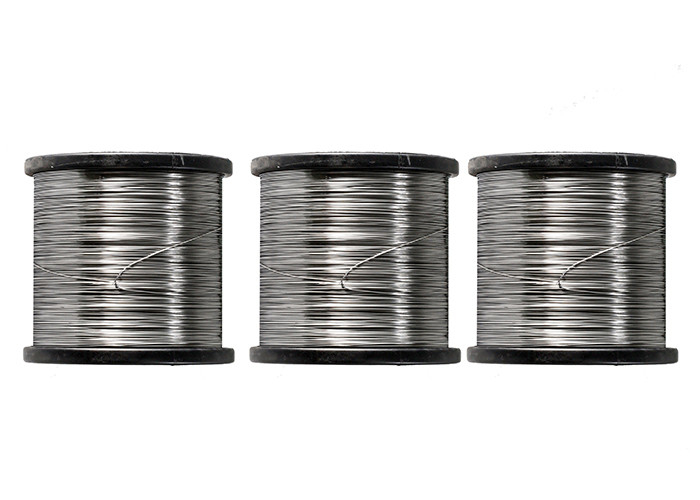

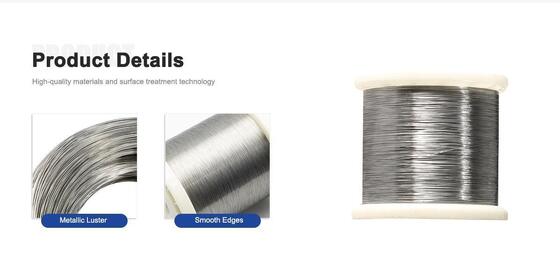

Non heat treatable nickel-chromium-iron super nickel alloy Inconel 625 wire
- Inconel Series
The Nickel Inconel 625 is a non-magnetic nickel-chromium superalloy that features superb corrosion resistance as expected by the presence of the aforementioned transition metals. Moreover, it is very strong and is characterized by the wide range of its fabrication possibilities.
The safe operating temperature range of Nickel Inconel 625 spans from -238℉ (-150℃) to up to 1800℉ (982℃), so it can be used in a wide spectrum of applications that require exceptional corrosion resistance characteristics.
nconel Nickel-Chromium Alloy 625 is a highly corrosion and heat resistant alloy with excellent mechanical properties ideal for use in high temperature applications such as heat-treating, chemical processing, and nuclear reactor components.
As it is evident from the latter especially, the Inconel 625 is also very resistant to cracking, rupture and creeping damage, featuring high tensile strength and extraordinary corrosion versatility.
-
Chemical Properties of Inconel 625
| Nickel | Chromium | Molybdenum | Iron | Niobium and Tantalum | Cobalt | Manganese | Silicon |
| 58% | 20%-23% | 8%-10% | 5% | 3.15%-4.15% | 1% | 0.5% | 0.5% |
- Application
Some typical applications are:
- The core of mooring cables
- Submarine propeller blades
- Submarine propulsion unit caging
- Navy boat exhaust ducts
- Undersea communication cables sheathing
- Other submerged systems or instruments
- Aircraft ducts and exhausts
- Thrust-reversers
- Engine compartment housing
- Fuel and hydraulics tubing
- Turbine seals
- Reactor core components
- Fuel control rod components
- General plant equipment
- Vessels
- Honeycomb heat exchangers
- Various types of industrial tubing
- Distillation columns
- Valves
- Super-heated potassium and sodium solar power stations tubing
- ,Type we could offer
AMS Number Alloy Type UNS Cross Ref. Spec Misc./Shape AMS 5581 Custom Tube Inconel 625 Nickel N06625 - Custom Tube
AMS 5581 Tubing Inconel 625 Nickel N06625 - Tubing AMS 5599 Plate Inconel 625 Nickel N06625 - Plate AMS 5599 Sheet Inconel 625 Nickel N06625 - Sheet AMS 5599 Strip Inconel 625 Nickel N06625 - Strip AMS 5666 Bar Inconel 625 Nickel N06625 - Bar AMS 5666 Custom Tube Inconel 625 Nickel N06625 - Custom Tube AMS 5666 Forging Inconel 625 Nickel N06625 - Forging AMS 5666 Ring Inconel 625 Nickel N06625 - Ring AMS 5869 Plate Inconel 625 Nickel N06625 - Plate AMS 5869 Sheet Inconel 625 Nickel N06625 - Sheet AMS 5869 Strip Inconel 625 Nickel N06625 - Strip
