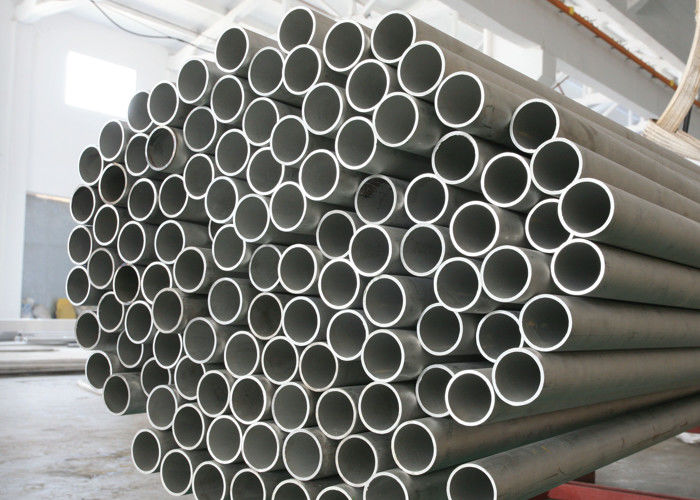

Astm B163 Incoloy 825 UNS N08825 925 Uns No 9925 Nickel Alloy Sch80 SchXXS Welded Seamless Pipe

Product Details

Place of Origin: China

Brand Name: DLX

Model Number: incoloy 925 tube

Payment & Shipping Terms

Minimum Order Quantity: 5

Packaging Details: wooden case, woven polybag for incoloy 925 tube

Delivery Time: 5-21 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 300 tons per month

Get Best Price
Contact Now
Specifications
Highlight:

Incoloy 825 Tube

,

Astm B163 Welded Seamless Pipe

,

Nickel Alloy Sch80 Welded Seamless Pipe

Material:
Ni Fe Cr Mo Ti Al
Nickel(Min):
42-46%
Tensile Strength::
172
Yield Strength:
124
Density:
8.08 G/cm³
Elongation:
27%
Condition:
Hard / Soft
Sureface:
Bright,Oxided
Delivery Time:
7-50 Days
Melting Point:
1311-1366°C
Hardness:
336
Material:
Ni Fe Cr Mo Ti Al
Nickel(Min):
42-46%
Tensile Strength::
172
Yield Strength:
124
Density:
8.08 G/cm³
Elongation:
27%
Condition:
Hard / Soft
Sureface:
Bright,Oxided
Delivery Time:
7-50 Days
Melting Point:
1311-1366°C
Hardness:
336
Description
Astm B163 Incoloy 825 UNS N08825 925 Uns No 9925 Nickel Alloy Sch80 SchXXS Welded Seamless Pipe

Astm B163 Incoloy 825 UNS N08825 925 Uns No 9925 Nickel Alloy Sch80 SchXXS Welded Seamless Pipe 0



astm b163 Incoloy 825 UNS N08825 925 uns no 9925 Nickel alloy sch80 schXXS welded seamless pipe / tube





  • Inconel Alloy Series

incoloy 925 tube Features: nickel-chromium alloy with good oxidation resistance at higher temperatures, with good resistance in carburizing and chloride containing environments. Inconel 600 is a nickel-chromium alloy designed for use from cryogenic to elevated temperatures in the range of 2000 deg F(1093 deg C). The high nickel content of the alloy enables it to retain considerable resistance under reducing conditions and makes it resistant to corrosion by a number of organic and inorganic compounds. The nickel content gives it excellent resistance to chloride-ion stress-corrosion cracking and also provides excellent resistance to alkaline solutions. Alloy 600 is non-magnetic, has excellent mechanical properties and a combination of high strength and good workability and is readily weldable. Inconel 600 exhibits cold forming characteristics normally associated with chromium-nickel stainless steels.

Applications: Typical corrosion applications include titanium dioxide production (chloride route), perchlorethylene syntheses, vinyl chloride monomer (VCM), and magnesium chloride. Alloy 600 is used in chemical and food processing, heat treating, phenol condensers, soap manufacture, vegetable and fatty acid vessels and many more.




  • 1. Chemical Composition Requirement

    The Chemical Composition of Incoloy 925, %
    Nickel 42.0-46.0
    Chromium 19.5-22.5
    Iron ≥22.0
    Molybdenum 2.5-3.5
    Copper 1.5-3.0
    Titanium 1.9-2.4
    Alumium 0.1-0.5
    Manganese ≤1.00
    Silicon ≤0.50
    Niobium ≤0.50
    Carbon ≤0.03
    Sulfur ≤0.30

  • 2. Mechanical Properties of Incoloy 925

    Tensile Strength, min. Yield Strength, min. Elongation, min. Hardness, min.
    Mpa ksi Mpa ksi % HRC
    1210 176 815 118 24 36.5

    3. Physical Properties of Incoloy 925

    Density Melting Range Specific Heat Electrical Resistivity
    g/cm3 °F °C J/kg.k Btu/lb. °F µΩ·m
    8.08 2392-2490 1311-1366 435 0.104 1166

    4. Product Forms and Standards

    Product Form Standard
    Rod, bar & Wire ASTM B805
    Plate, sheet & strip ASTM B872
    Seamless pipe and tube ASTM B983
    Forging ASTM B637




Astm B163 Incoloy 825 UNS N08825 925 Uns No 9925 Nickel Alloy Sch80 SchXXS Welded Seamless Pipe 1Astm B163 Incoloy 825 UNS N08825 925 Uns No 9925 Nickel Alloy Sch80 SchXXS Welded Seamless Pipe 2Astm B163 Incoloy 825 UNS N08825 925 Uns No 9925 Nickel Alloy Sch80 SchXXS Welded Seamless Pipe 3
