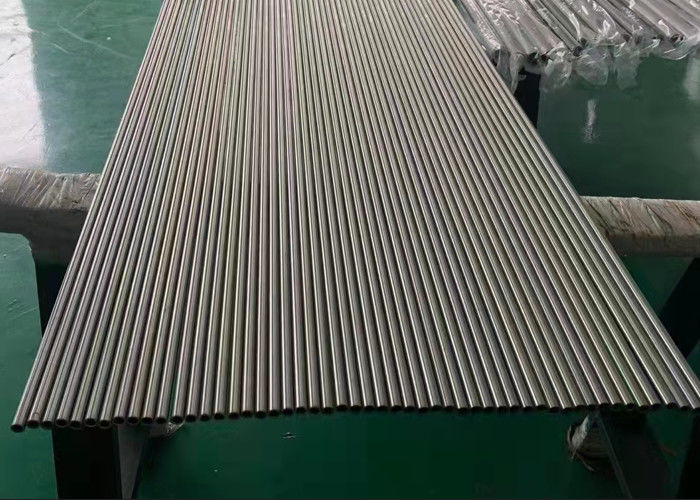

Incoloy 800 Seamless Pipe ASTM B409 Incoloy800 UNS N08800 GB NS111 Alloy800 tube

Product Details

Place of Origin: China

Brand Name: DLX

Model Number: incoloy 800 pipe

Payment & Shipping Terms

Minimum Order Quantity: 5

Packaging Details: wooden case or woven bag for incoloy 800 pipe

Delivery Time: 5-21 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 300 tons per month

Get Best Price
Contact Now
Specifications
Highlight:

Incoloy 800 Seamless Pipe

,

Incoloy 800 Pipe

,

ASTM B409 Seamless Pipe

Material:
Ni Fe Cr
Nickel(Min):
30%
Coefficient Of Expansion:
14.4 μm/m °C (20 – 100°C)
Specific Heat:
460 J/kg•°C
Density:
7.94 G/cm3
Curie Temperature:
-115°C
Sureface:
Bright, Acid White
Delivery Time:
7-50 Days
Thermal Conductivity:
11.5 W/m-K
Melting Point:
1385°C
Elongation:
30 %
Material:
Ni Fe Cr
Nickel(Min):
30%
Coefficient Of Expansion:
14.4 μm/m °C (20 – 100°C)
Specific Heat:
460 J/kg•°C
Density:
7.94 G/cm3
Curie Temperature:
-115°C
Sureface:
Bright, Acid White
Delivery Time:
7-50 Days
Thermal Conductivity:
11.5 W/m-K
Melting Point:
1385°C
Elongation:
30 %
Description
Incoloy 800 Seamless Pipe ASTM B409 Incoloy800 UNS N08800 GB NS111 Alloy800 tube

Incoloy 800 Seamless Pipe ASTM B409 Incoloy800 UNS N08800 GB NS111 Alloy800 tube 0

Incoloy 800 Seamless Pipe/Tube Manufacturer ASTM B409 Incoloy800/UNS N08800/GB NS111/Alloy800 tube



  • Incoloy Series

Corrosion Resistance in the strickly working condition incoloy 800 pipe offer superior corrosion resistance in oxidizing corrosive environments such as nitric acid or nitric acid-sulfuric acid. Likewise, they perform well in sodium salt and other molten salt environments, with stress corrosion cracking resistance surpassing standard austenitic stainless steels.
Applications in the indutry for incoloy 800ht 800H 800 are widely used in chemical plants, heat treatment furnaces and other high-temperature environments.




  • Chemical Properties of Incoloy 800



Incoloy Ni Cr Fe C Mn S Si Cu Al Ti
800 30.0-35.0 19.0-23.0 39.5min 0.10max. 1.50max. 0.015max. 1.0max. 0.75max. 0.15-0.60 0.15-0.60



  • Application


Some typical applications are:

  • Heat-treating equipment such as baskets, trays, and fixtures.
  • Chemical and petrochemical processing,
  • Heat exchangers and other piping systems in nitric acid media especially where resistance to chloride stress-corrosion cracking is required.
  • Nuclear power plants, it is used for steam-generator tubing.
  • Domestic appliances for sheathing of electric heating elements.
  • Production of paper pulp, digester-liquor heaters are often made of alloy 800.
  • Petroleum processing, the alloy is used for heat exchangers that air cool the process stream.






  • ,Type we could offer
    AMS Number Alloy Type UNS Cross Ref. Spec Misc./Shape
    AMS 5766 Bar Incoloy 800 Nickel N08800 - Bar AMS 5766 Bar
    AMS 5766 Custom Tube Incoloy 800 Nickel N08800 - Custom Tube AMS 5766 Custom Tube
    AMS 5871 Plate Incoloy 800 Nickel N08800 - Plate AMS 5871 Plate
    AMS 5871 Sheet Incoloy 800 Nickel N08800 - Sheet AMS 5871 Sheet
    AMS 5871 Strip Incoloy 800 Nickel N08800 - Strip AMS 5871 Strip
