Nichrome 80 / 20 Cr20Ni80 Resistance Wire For Heating Element

Name: Nichrome 80 / 20 Cr20Ni80 Resistance Wire For Heating Element
Brand: Changzhou DLX Alloy Co., Ltd.
SKU: Cr20Ni80
Price: 35.00 USD
Availability: InStock

Brand Name:	DLX
Model Number:	Cr20Ni80
MOQ:	5
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

China Jiangsu

Certification:

CE,ROHS

Material:

Nickel, Chromium

Nickel(Min):

77%

Resistivity:

1.09+/-0.05

Tensile Strength:

637MPA

Elongtation:

≥20%

Application:

Heating, Resistivity

Condition:

Hard / Soft

Sureface:

Bright, Oxided, Acide

Delivery Time:

7-20 Days

Name:

Resistance Wire

Packaging Details:

Spool package with Carton box, Coil package with polybag for Resistance wire

Supply Ability:

500 tons per month

Highlight:

Heating Element Cr20Ni80 Resistance Wire

Heating Element Nichrome 80 Resistance Wire

637MPA NiCr Alloy

Product Description

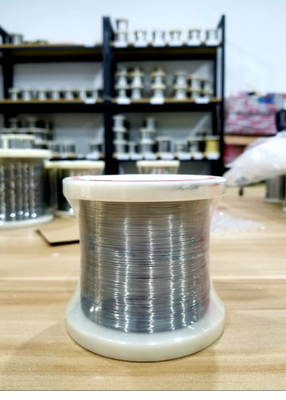

Nichrome 80 / 20 Cr20Ni80 Resistance Wire For Heating Element 0

Low Price Wholesale Nichrome 80 / 20 Cr20Ni80 Resistance Wire for Heating Element

Nichrome 80 / 20 Cr20Ni80 Resistance Wire For Heating Element 1

NiCr Series

The Cr20Ni80 resistance wire is composed of nickel-chromium alloy, which has high resistivity, good oxidation resistance and very stability. The maximum applicable temperature is up to 1200 degrees, and it has a longer service life than iron, chromium and aluminum.The alloy is widely used in household components, industrial furnaces and various resistance components, such as wirewound resistors, sheet metal resistors, hair dryers, electric furnaces, iron smelting, ovens, and even electronic cigarettes.

Nickel-chromium, nickel, ferrochrome alloy resistance wire with electric high temperature oxidation resistance, high strength, not soften and a series of advantages. When used in a long time, the same type and the permanent elongation is very small, which is more Cr20Ni80 alloy with excellent comprehensive properties, is to produce high-quality varieties of choice for electric components.

Nickel-chromium resistance wire performance tables

Performance material		Cr10Ni90	Cr20Ni80	Cr30Ni70	Cr15Ni60	Cr20Ni35	Cr20Ni30
Composition	Ni	90	Rest	Rest	55.0～61.0	34.0～37.0	30.0～34.0
	Cr	10	20.0～23.0	28.0～31.0	15.0～18.0	18.0～21.0	18.0～21.0
	Fe		≤1.0	≤1.0	Rest	Rest	Rest
Maximum temperature℃		1300	1200	1250	1150	1100	1100
Meltiing point ℃		1400	1400	1380	1390	1390	1390
Density g/cm3		8.7	8.4	8.1	8.2	7.9	7.9
Resistivity			1.09±0.05	1.18±0.05	1.12±0.05	1.00±0.05	1.04±0.05
μΩ·m,20℃
Elongation at rupture		≥20	≥20	≥20	≥20	≥20	≥20
Specific heat			0.44	0.461	0.494	0.5	0.5
J/g.℃
Thermal conductivity			60.3	45.2	45.2	43.8	43.8
KJ/m.h℃
Coefficient of lines expansion			18	17	17	19	19
a×10-6/
(20～1000℃)
Micrographic structure			Austenite	Austenite	Austenite	Austenite	Austenite
Magnetic properties			Nonmagnetic	Nonmagnetic	Nonmagnetic	Weak magnetic	Weak magnetic

The Form we could offer

Size Range
Wire	dia 0.03-7.5mm
	dia 8.0-12.0mm
Ribbon	(0.05-0.35)*(0.5-6.0)mm

Strip	(0.50-2.5)*(5-180)mm

Rod	8-50mm
