• Vacuum Coating Thermal Spray Wire 30 HRC 35 HRC
Vacuum Coating Thermal Spray Wire 30 HRC 35 HRC

Vacuum Coating Thermal Spray Wire 30 HRC 35 HRC

Product Details:

Place of Origin: China
Brand Name: DLX
Model Number: 45CT

Payment & Shipping Terms:

Minimum Order Quantity: 15
Packaging Details: Spool package with Carton box, Coil package with polybag
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Get Best Price Contact Now

Detail Information

Product Name: Thermal Spray Wire Grade: 45CT
Certificate: ISO9001 Material: Ni+Cr
Application: Vacuum Coating Coating Hardness: 30~35 HRC
Bonding Strength: 48.26 N/mm2 Size: 0.8mm 1.2mm 1.6mm 2.4mm 3.2mm
Name: TAFA 45 CT / Metco 8500 Surface: Brightly
High Light:

Vacuum Coating Thermal Spray Wire

,

30 HRC Thermal Spray Wire

,

Ni Cr Tafa Wire

Product Description

Vacuum Coating Thermal Spray Wire 30 HRC 35 HRC 0

1.6mm TAFA 45 CT Metco 8500 Thermal Spray Wire From Factory


  • Thermal spray wire​

1.Introduction:

DLX alloy offer nickel based thermal spray wire. We produce NiCrTi/45CT wire is a Nickel/Chrome/Titanium wire. 45CT wire was developed specifically for boiler applications. 45CT wire is  second generation material replaces 06BXP and produces coatings which are extremely resistant to corrosive vanadium and sulfur gases in boiler atmospheres



2.Typical Uses and Applications:
45CT material has proven very effective in providing long term protection to boiler tubes against high temperature sulfidation. The wrought material is highly resistant to sulfur/vanadium atmospheres up to 1800°F. Wrought material of this type has shown a 2 mil per year corrosion rate over a nine year period when used in the super heater section of boilers. Coatings of 45CT wire applied to boiler tubes have shown virtually no loss of thickness or spalling after 24 months of service (as of this writing).



  • Thermal spray wire​
Item Inconel 625 Ni95Al5 45CT Monel 400 HC-276 Cr20Ni80 K500
C ≤0.05 ≤0.02 0.01-0.1 ≤0.04 ≤0.02 ≤0.08 ≤0.25
Mn ≤0.4 ≤0.2 ≤0.2 2.5-3.5 ≤1.0 ≤0.06 ≤1.5
P ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.02 ≤0.01
S ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.01
Si ≤0.15 ≤0.2 ≤0.2 ≤0.15 ≤0.08 0.75-1.6 ≤0.5
Cr 21.5-23 ≤0.2 42-46 - 14.5-16 20-23 -
Ni Rest Rest Rest 65-67 Rest Rest Rest
Cu - - - Rest - - 27-33
Mo 8.5-10 - - - 15-17 - -
Ti ≤0.4 0.4-1 0.3-1.0 2.0-3.0 - - 0.35-0.85
Al ≤0.4 4--5 - ≤0.5 - - 2.3-3.15
Fe ≤1.0 - ≤0.5 ≤1.0 4.0-7.0 - ≤1.0
Nb 3.5-4.15 - - - - ≤1.0 -
Co - - - - - - -
V - - - - ≤0.35 - -
W - - - - 3.0-4.5 - -
Impurities ≤0.50 ≤0.50 ≤0.50 ≤0.50 ≤0.50 ≤0.50 ≤0.50



  • ​Application

The coatings of NW 450T wire is used to protect boiler tubes in thermal power plant such as water cooling tube, superheater tube, reheater tube and economizer tube from oxidation and sulfidation against high temperature.

It also proven to be particularly effective as a protective arc spray coating for boiler tubes in black liquor recovery boilers and coal fired utility boilers.




  • Size range

Wire: 0.8mm 1.2mm 1.6mm 2.4mm 3.2mm.

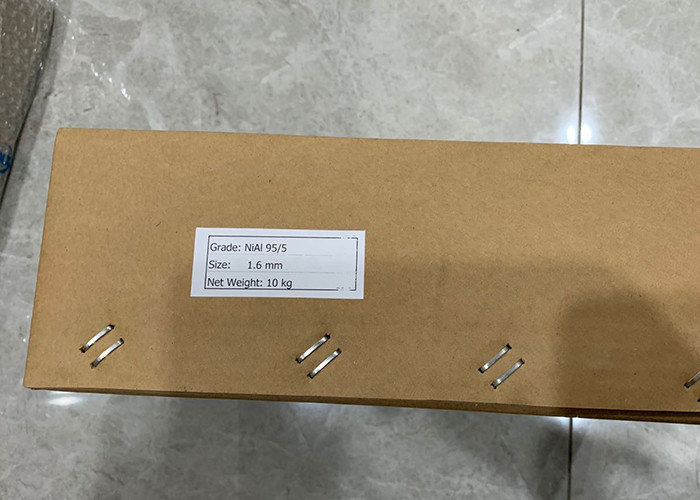

  • Package

Products are generally supplied in standard cardboard boxes, pallets, wooden boxes. Special packaging requirements can also be accommodated. (also depend on the customers' requirements)
For the Thermal spray wires , we wind small size wire less than 1.6mm wires on spools. Bigger size over than 2.4mm in coils. Then put spools into cartons, Then put the cartons onto pallet or wood box.




  • Our Services

1) Free sample could be supplied for testing purpose.
2) Customized lable, packing, OEM service.
3) Mill test certificate will be provided after production.
4) Good packing methods to keep goods statable.








CHANGZHOU DLX ALLOY COMPANY was establish in 2016,our factory established in 2002 and has got ISO9001 International Quality Management System Certificate and SGS Certificate.Our factory is becoming a high-tech company,We are professional in researching and producing special alloy material.The production process include melting,drawing,heat treatment,finishing and testing.We offer super alloy,welding wire,corrosion resistance alloy,precision alloy,FeCrAl alloy,NiCr alloy,CuNi alloy,in the form of wire,strip,ribbon,bar,tube,plate and etc.The administrative principle of our company is "intensifying inner supervision, complying with technical process and quality control, continuously adopting new technology to ensure the product quality". We employ some senior engineers to instruct technology, apply new technology and research new products. Our operation principle is "Quality first, Customer first". All the staff of our company would like to provide high quality and reasonably priced products for clients at home and abroad, and to make your products more competitive.

Vacuum Coating Thermal Spray Wire 30 HRC 35 HRC 1Vacuum Coating Thermal Spray Wire 30 HRC 35 HRC 2
