Ni95al5 Tafa 75B Thermal Spray Wire HRB 75 0.8mm 3.2mm

Ni95al5 Tafa 75B Thermal Spray Wire HRB 75 0.8mm 3.2mm

Product Details:

Place of Origin: China
Brand Name: DLX
Model Number: Ni95Al5

Payment & Shipping Terms:

Minimum Order Quantity: 15
Packaging Details: Spool package with Carton box, Coil package with polybag
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Get Best Price Contact Now

Detail Information

Product Name: Thermal Spray Wire Grade: Ni95Al5
Certificate: ISO9001 Material: Ni+Al
Application: Vacuum Coating Coating Hardness: HRB 75
Bonding Strength: 68.95 N/mm2 Size: 0.8mm
High Light:

Tafa 75B Thermal Spray Wire

,

0.8mm Thermal Spray Wire

,

HRB 75 Nickel Alloy Wire

Product Description

Ni95al5 Tafa 75B Thermal Spray Wire HRB 75 0.8mm 3.2mm 0


0.8mm Ni95al5 Tafa 75B Thermal Spray Wire From Manufacturer


  • Thermal spray wire​

Introduction:

NiAl95/5 is kind of nickel aluminum alloy, which is used for thermal spray. Ni95Al5 thermal spray wire can be achieved on clean smooth surfaces. Roughening of the surface by machining, grit blasting or grinding can increase the bond strength up to 10,000 psi. Changzhou DLX alloy produce Ni95Al 5 wire and it exhibits good resistance to high temperature oxidation and abrasion, and excellent resistance to impact and bending. NiAl95/5 can be machined and ground to a finish of 5 micro inches. It is a self-bonding, one step material and is also suitable for the build-up and dimensional restoration of nickel-based alloys. PMET 885/Ni95Al5/Tafa 75B/ MEC 885 is widely used as a bond coat for subsequent thermal spray topcoats and as a one-step build up material for dimensional restoration of aircraft engines.



Typical Uses and Applications:
This material has proven very effective in providing long term protection to boiler tubes against high temperature sulfidation. The wrought material is highly resistant to sulfur/vanadium atmospheres up to 1800°F. Wrought material of this type has shown a 2 mil per year corrosion rate over a nine year period when used in the super heater section of boilers. Coatings of 45CT wire applied to boiler tubes have shown virtually no loss of thickness or spalling after 24 months of service (as of this writing).







  • Thermal spray wire​
Item Inconel 625 Ni95Al5 45CT Monel 400 HC-276 Cr20Ni80 K500
C ≤0.05 ≤0.02 0.01-0.1 ≤0.04 ≤0.02 ≤0.08 ≤0.25
Mn ≤0.4 ≤0.2 ≤0.2 2.5-3.5 ≤1.0 ≤0.06 ≤1.5
P ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.02 ≤0.01
S ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.01
Si ≤0.15 ≤0.2 ≤0.2 ≤0.15 ≤0.08 0.75-1.6 ≤0.5
Cr 21.5-23 ≤0.2 42-46 - 14.5-16 20-23 -
Ni Rest Rest Rest 65-67 Rest Rest Rest
Cu - - - Rest - - 27-33
Mo 8.5-10 - - - 15-17 - -
Ti ≤0.4 0.4-1 0.3-1.0 2.0-3.0 - - 0.35-0.85
Al ≤0.4 4--5 - ≤0.5 - - 2.3-3.15
Fe ≤1.0 - ≤0.5 ≤1.0 4.0-7.0 - ≤1.0
Nb 3.5-4.15 - - - - ≤1.0 -
Co - - - - - - -
V - - - - ≤0.35 - -
W - - - - 3.0-4.5 - -
Impurities ≤0.50 ≤0.50 ≤0.50 ≤0.50 ≤0.50 ≤0.50 ≤0.50



  • ​Application

(1) For vacuum coating
(2) For making valves grid, inner components of vacuum valves
(3) Components insides the electron tubes
(4) For making lead, supporting wire
(5) For Electronic components
(6) For battery production
(7) Strong base of the filter




  • Size range

Wire: 0.8mm 1.2mm 1.6mm 2.4mm 3.2mm.

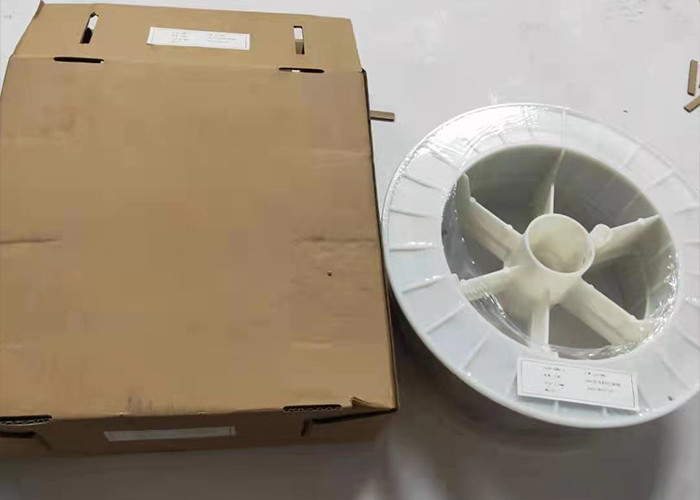

  • Package

Products are generally supplied in standard cardboard boxes, pallets, wooden boxes. Special packaging requirements can also be accommodated. (also depend on the customers' requirements)
For the Thermal spray wires , we wind small size wire less than 1.6mm wires on spools. Bigger size over than 2.4mm in coils. Then put spools into cartons, Then put the cartons onto pallet or wood box.




  • Our Services

1) Free sample could be supplied for testing purpose.
2) Customized lable, packing, OEM service.
3) Mill test certificate will be provided after production.
4) Good packing methods to keep goods statable.




CHANGZHOU DLX ALLOY COMPANY was establish in 2016,our factory established in 2002 and has got ISO9001 International Quality Management System Certificate and SGS Certificate.Our factory is becoming a high-tech company,We are professional in researching and producing special alloy material.The production process include melting,drawing,heat treatment,finishing and testing.We offer super alloy,welding wire,corrosion resistance alloy,precision alloy,FeCrAl alloy,NiCr alloy,CuNi alloy,in the form of wire,strip,ribbon,bar,tube,plate and etc.The administrative principle of our company is "intensifying inner supervision, complying with technical process and quality control, continuously adopting new technology to ensure the product quality". We employ some senior engineers to instruct technology, apply new technology and research new products. Our operation principle is "Quality first, Customer first". All the staff of our company would like to provide high quality and reasonably priced products for clients at home and abroad, and to make your products more competitive.
