Low Expansion 3j01 NiFe52 Invar36 Alloy 52 Iron Nickel Alloy

Brand Name:	DLX
Model Number:	feni52/alloy52
MOQ:	50
Price:	$22-$30
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	300 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certificate:

ISO9001

Shape:

Tubes

Ni (Min):

49%

Size:

Customized

Resistance (μΩ.m)::

0.44

Ultimate Strength (≥ MPa)::

525

Elongation (≥ %):

15-25

Application::

Heating, Household Electrical Application

Brand Name::

DLX

Melting Point:::

1430

Treatment:::

Hydrogen Annealing

Packaging Details:

packed with bubble bags ,outside carton packing

Supply Ability:

300 tons per month

Highlight:

3j01 Iron Nickel Alloy

Invar36 Strong Iron Alloy

Alloy 52 Iron Nickel Alloy

Product Description

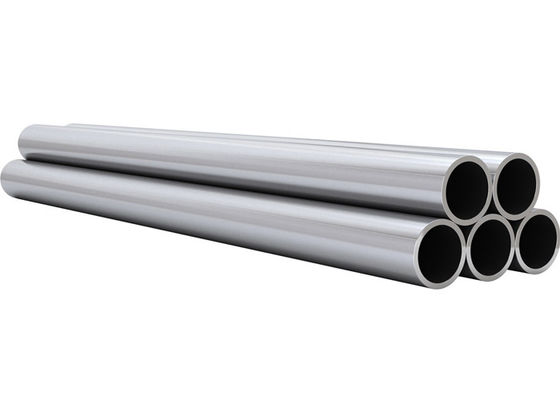

Low Expansion 3j01 NiFe52 Invar36 Alloy 52 Iron Nickel Alloy 0

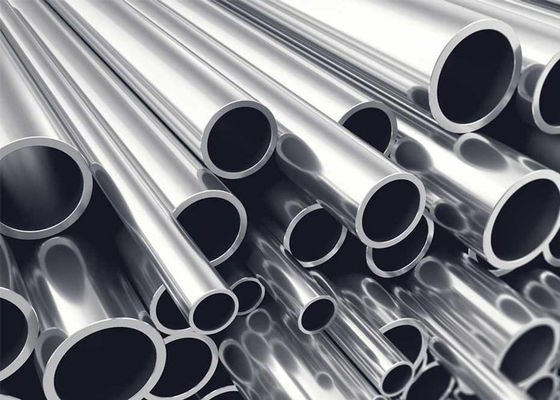

Low Expansion 3j01 NiFe52 Invar36 Alloy 52 Iron Nickel Alloy 1

expansion Precision alloy 4j50 Nife52 alloy52 pipe/tube

Precision Alloy Alloy52, also known as FeNi52, is a nickel-iron, low-expansion alloy containing 51% nickel. Precision Alloy has a low coefficient of expansion from cryogenic temperatures to about 260°C. In the dry air at home temperature, as good resistance to corrosion. But in moist air, it may go corrosion.

Precision Alloy is suitable for the applications who require low coefficient of expansion, such as production, storage and transportation of liquid gas, temperature regulation devices working below 200°C, aperture mask, unit frameworks working below -200°C and so on.

Basic performance: Precision Alloy is divided into low-expansion alloy and fixed-expansion alloy, the latter is also known as sealing alloy. Precision Alloy Expansion alloy besides has the specific thermal expansion coefficient, according to the different USES also requires a good sealing property, weldability and corrosion resistance, machinability and cutting, and in the use of expansion characteristics caused by the temperature range there is no obvious change of phase transformation, Precision Alloy product is commonly bar, sheet, strip, wire and tube and so on.
Precision Alloy Expansion alloy applications: Precision Alloy is widely used in glass, metal and ceramic sealing in avionics and instruments, electric vacuum industry and other electronic devices, electric light source and other fields.

Precision alloy series: 1J33,3J01,3J9,4J29,4J32.4J33,Invar36,4J45.FeNi50.FeNi52

Chemical Composition (Weight,%)
Ni,Nominal	Mn,Max	Si,Max	C,Max	Cr,Max	P,Max	S,Max	Al,Max	Fe
50.5	0.60	0.30	0.05	0.25	0.025	0.025	0.10	Bal.

Physical Properties
Electrical Resistivity, μΩ.m	0.44
Density,g/cm3	8.2
Melting Range, ºC	1430
Thermal Conductivity ,w/(m•°C)	14

Thermal Expansion
Tmperature Range, °C	Average Linear Coefficient of Thermal Expansion, μ m/m•°C
30 to 450	9.7 to 1.2
30 to 550	10.0 to 10.5

Mechanical Properties (Annealed Typical)
Ultimate Tensile Strength,MPa	Yield Strength,MPa	Elongation,A(%)	Hardness,RB
536 (Nom)	240(Nom)	30(Nom)	73(Nom)

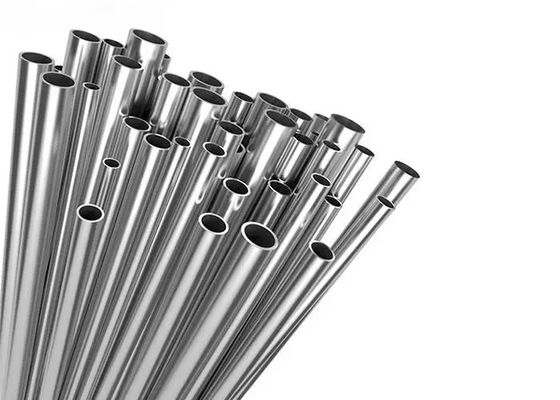

Low Expansion 3j01 NiFe52 Invar36 Alloy 52 Iron Nickel Alloy 2
