Incoloy 800 Nickelvac 800 AMS 5766 Incoloy Alloy
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Ni Fe Cr | Nickel(Min) | 30% |
|---|---|---|---|
| Coefficient Of Expansion | 14.4 μm/m °C (20 – 100°C) | Specific Heat | 460 J/kg•°C |
| Density | 7.94 G/cm3 | Curie Temperature | -115°C |
| Sureface | Bright, Acid White | Delivery Time | 7-50 Days |
| Thermal Conductivity | 11.5 W/m-K | Melting Point | 1385°C |
| Elongation | 30 % | ||
| Highlight | Nickelvac 800 Incoloy Alloy,Incoloy 800 Nickel Copper,AMS 5766 Incoloy Alloy |
||
Product Description
- Inconel Series
Common Trade Names: Incoloy 800, Alloy 800, Ferrochronin 800, Nickelvac 800, Nicrofer 3220.

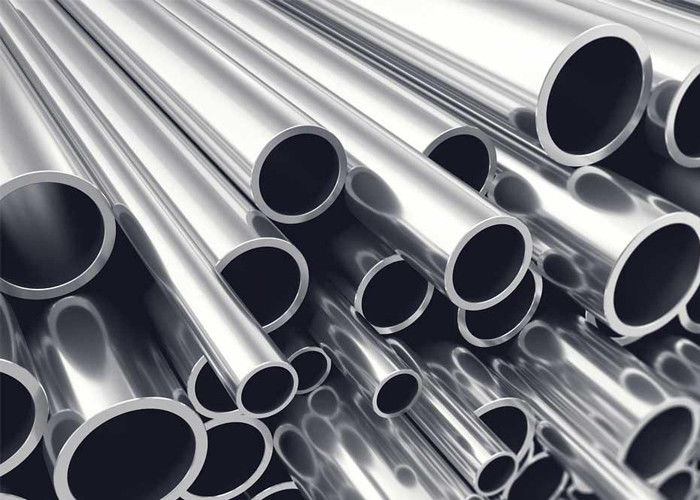

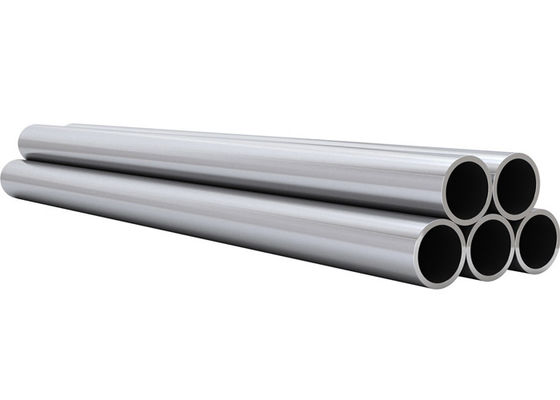

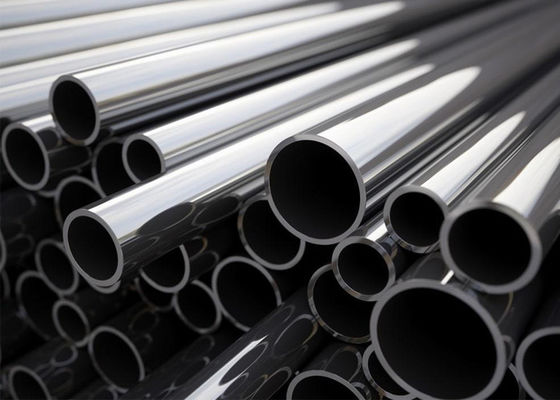

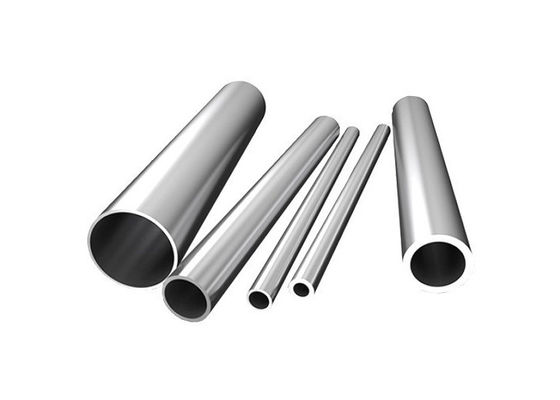

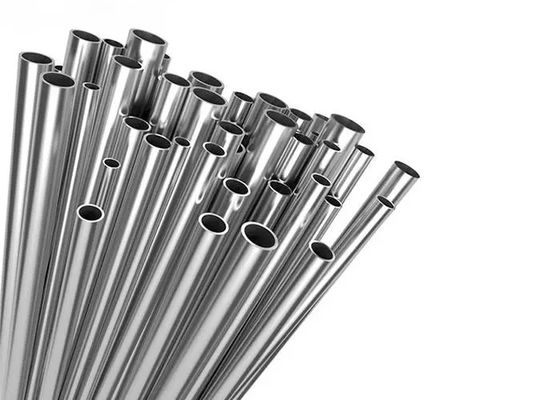

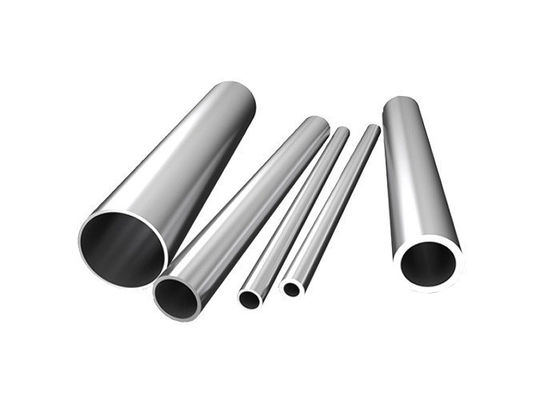

INCOLOY 800 (UNS N08800, W. Nr. 1.4876) seamless and weld tube / pipe is a widely used material for construction of equipment requiring corrosion resistance, heat resistance, strength, and stability for service up to 1500°F (816°C). Alloy 800 offers general corrosion resistance to many aqueous media and, by virtue of its content of nickel, resists stress corrosion cracking. At elevated temperatures it offers resistance to oxidation, carburization, and sulfidation along with rupture and creep strength. For applications requiring greater resistance to stress rupture and creep, especially at temperatures above 1500°F (816°C), INCOLOY alloys 800H and 800HT are used.
-
Chemical Properties of Incoloy 800
| Incoloy | Ni | Cr | Fe | C | Mn | S | Si | Cu | Al | Ti |
| 800 | 30.0-35.0 | 19.0-23.0 | 39.5min | 0.10max. | 1.50max. | 0.015max. | 1.0max. | 0.75max. | 0.15-0.60 | 0.15-0.60 |
- Application
Some typical applications are:
- Heat-treating equipment such as baskets, trays, and fixtures.
- Chemical and petrochemical processing,
- Heat exchangers and other piping systems in nitric acid media especially where resistance to chloride stress-corrosion cracking is required.
- Nuclear power plants, it is used for steam-generator tubing.
- Domestic appliances for sheathing of electric heating elements.
- Production of paper pulp, digester-liquor heaters are often made of alloy 800.
- Petroleum processing, the alloy is used for heat exchangers that air cool the process stream.
- ,Type we could offer
AMS Number Alloy Type UNS Cross Ref. Spec Misc./Shape AMS 5766 Bar Incoloy 800 Nickel N08800 - Bar AMS 5766 Custom Tube Incoloy 800 Nickel N08800 - Custom Tube AMS 5871 Plate Incoloy 800 Nickel N08800 - Plate AMS 5871 Sheet Incoloy 800 Nickel N08800 - Sheet AMS 5871 Strip Incoloy 800 Nickel N08800 - Strip
