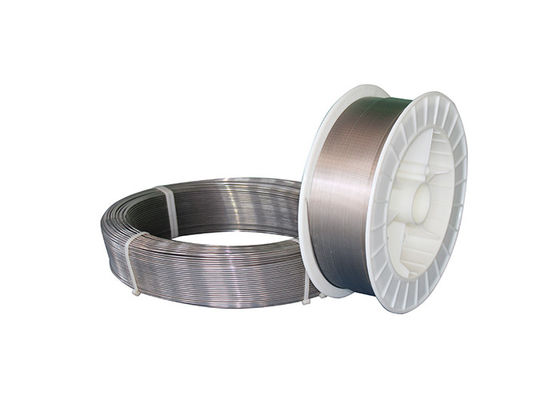

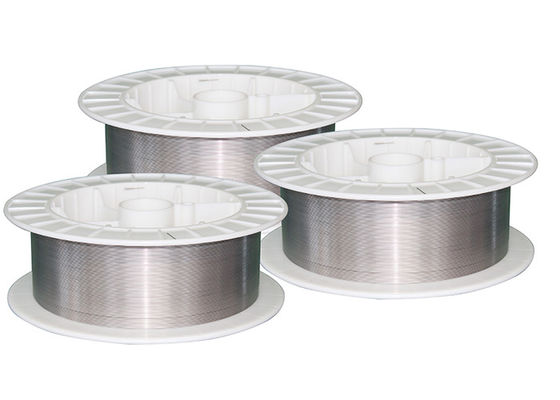

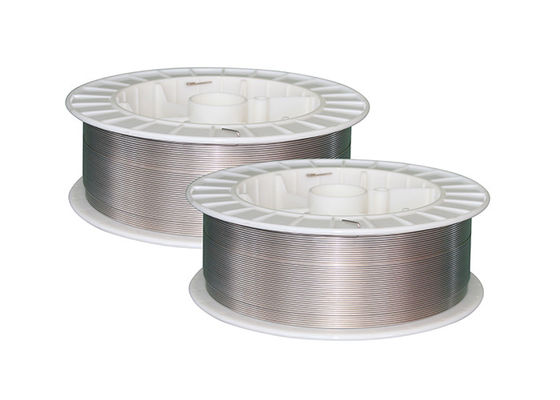

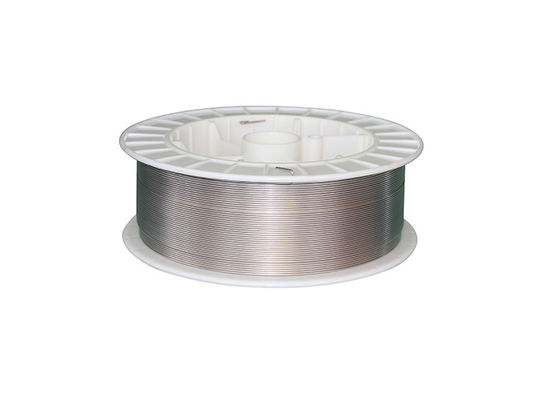

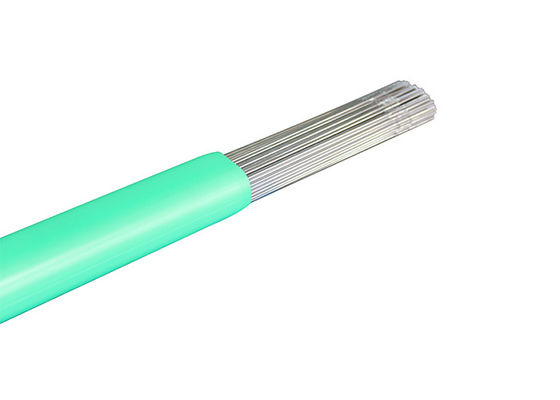

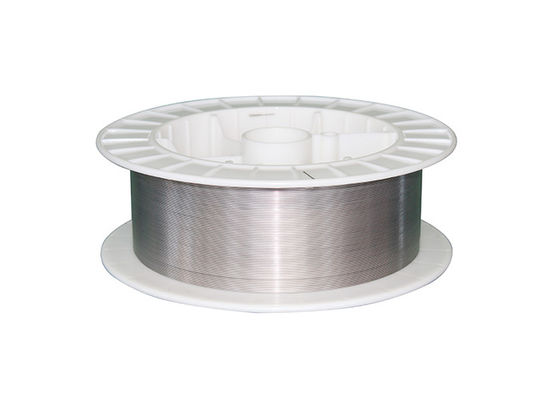

1276 MPA 3.17mm UNS 625 ERNiCrMo 3 Inconel Alloy

Product Details

Place of Origin: China Jiangsu

Brand Name: DLX

Certification: CE,ROHS

Model Number: inconel 625 Welding Wire

Payment & Shipping Terms

Minimum Order Quantity: 5

Price: $30-$50

Packaging Details: Alloy 625 plate packed in wooden case

Delivery Time: 5-20 Days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 500 tons per month

Get Best Price
Contact Now
Specifications
Highlight:

3.17mm Inconel Alloy

,

UNS 625 Inconel Metal

,

ERNiCrMo 3 Wire Inconel Alloy

Material:
Ni Co Mn
Nickel(Min):
58%
Thermal Conductivity:
9.8 W/m*℃
Curie Point:
-319℉ (-195℃)
Density:
8.44 G/cm3
Yield Strength:
479.2-528.8 MPA
Condition:
Hard / Soft
Sureface:
Bright,Oxided
Delivery Time:
7-50 Days
Tensile Strength:
1276-1034 MPA
Melting Point:
1350℃
Elongation:
34-54%
Product Name:
1.0mm 1.2mm 1.6mm 2.4mm 3.17mm Alloy 625 Inconel 625 Welding Wire(ERNiCrMo-3)
Material:
Ni Co Mn
Nickel(Min):
58%
Thermal Conductivity:
9.8 W/m*℃
Curie Point:
-319℉ (-195℃)
Density:
8.44 G/cm3
Yield Strength:
479.2-528.8 MPA
Condition:
Hard / Soft
Sureface:
Bright,Oxided
Delivery Time:
7-50 Days
Tensile Strength:
1276-1034 MPA
Melting Point:
1350℃
Elongation:
34-54%
Product Name:
1.0mm 1.2mm 1.6mm 2.4mm 3.17mm Alloy 625 Inconel 625 Welding Wire(ERNiCrMo-3)
Description
1276 MPA 3.17mm UNS 625 ERNiCrMo 3 Inconel Alloy

1276 MPA 3.17mm UNS 625 ERNiCrMo 3 Inconel Alloy 0





  • 1276 MPA 3.17mm UNS 625 ERNiCrMo 3 Inconel Alloy 1Inconel Series

The inconel 625 welding wire is a non-magnetic nickel-chromium superalloy that features superb corrosion resistance as expected by the presence of the aforementioned transition metals. Moreover, it is very strong and is characterized by the wide range of its fabrication possibilities.

The safe operating temperature range of inconel 625 welding wire spans from -238℉ (-150℃) to up to 1800℉ (982℃), so it can be used in a wide spectrum of applications that require exceptional corrosion resistance characteristics.

Variable temperatures are not the only thing that inconel 625 welding wire can withstand, as the same applies for variable pressures and very harsh environments that induce high rates of oxidation. In general, it finds application in sea-water applications, the chemical processing industry, the nuclear energy field, and also the aerospace sector.

As it is evident from the latter especially,Alloy 625 plate is also very resistant to cracking, rupture and creeping damage, featuring high tensile strength and extraordinary corrosion versatility.






  • Chemical Properties Of Inconel 625 Welding Wire

Nickel Chromium Molybdenum Iron Niobium and Tantalum Cobalt Manganese Silicon
58% 20%-23% 8%-10% 5% 3.15%-4.15% 1% 0.5% 0.5%



  • Application

For joining and cladding most nickel alloys, stainless steels, and carbon steels. Excellent for oxidation and corrosion resistant applications.

  • Inconel 625 electrode that performs on AC current as well as DC current.
  • Rare version of this “Super Alloy” that works perfectly on small AC machines.
  • Welds can withstand temperature extremes ranging from 1900°F to -140°F (1050°C to ‰-196°C).
  • Welding characteristics and weld appearance are exceptional.




  • ,Type we could offer
    AMS Number Alloy Type UNS Cross Ref. Spec Misc./Shape
    AMS 5581 Inconel 625 Nickel N06625
    AMS 5581 Custom Tube Inconel 625 Nickel N06625 - Custom Tube AMS 5581 Custom Tube
    AMS 5581 Tubing Inconel 625 Nickel N06625 - Tubing AMS 5581 Tubing
    AMS 5599 Inconel 625 Nickel N06625
    AMS 5599 Plate Inconel 625 Nickel N06625 - Plate AMS 5599 Plate
    AMS 5599 Sheet Inconel 625 Nickel N06625 - Sheet AMS 5599 Sheet
    AMS 5599 Strip Inconel 625 Nickel N06625 - Strip AMS 5599 Strip
    AMS 5666 Inconel 625 Nickel N06625
    AMS 5666 Bar Inconel 625 Nickel N06625 - Bar AMS 5666 Bar
    AMS 5666 Custom Tube Inconel 625 Nickel N06625 - Custom Tube AMS 5666 Custom Tube
    AMS 5666 Forging Inconel 625 Nickel N06625 - Forging AMS 5666 Forging
    AMS 5666 Ring Inconel 625 Nickel N06625 - Ring AMS 5666 Ring
    AMS 5869 Inconel 625 Nickel N06625
    AMS 5869 Plate Inconel 625 Nickel N06625 - Plate AMS 5869 Plate
    AMS 5869 Sheet Inconel 625 Nickel N06625 - Sheet AMS 5869 Sheet
    AMS 5869 Strip Inconel 625 Nickel N06625 - Strip AMS 5869 Strip
