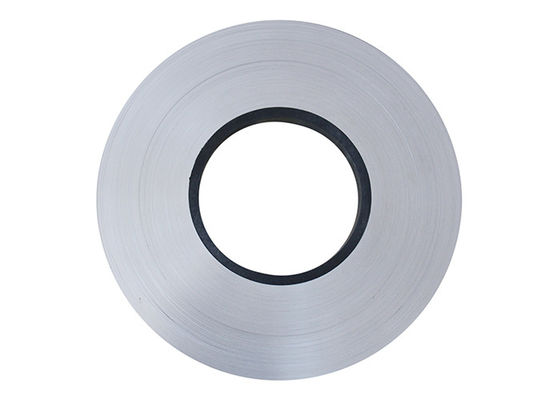

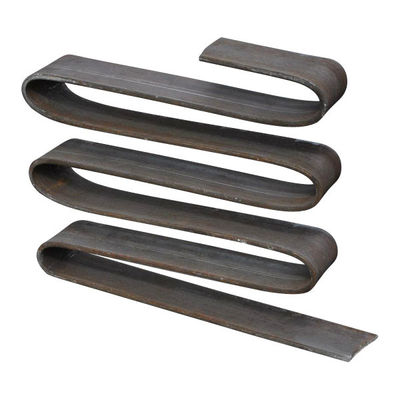

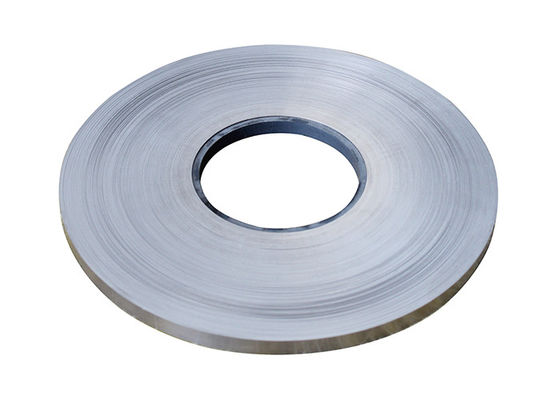

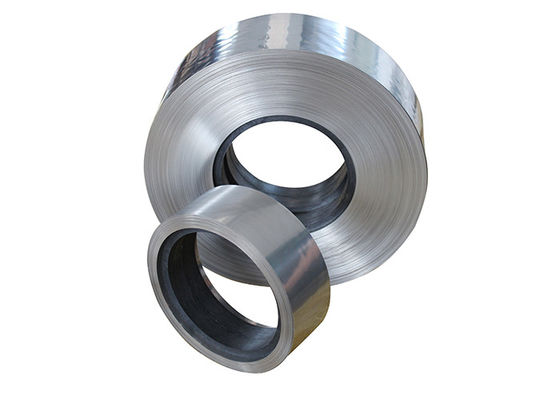

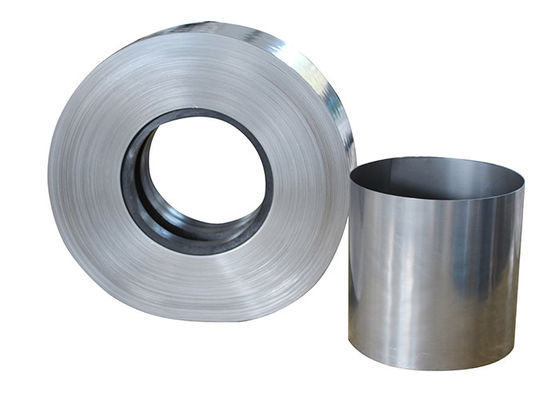

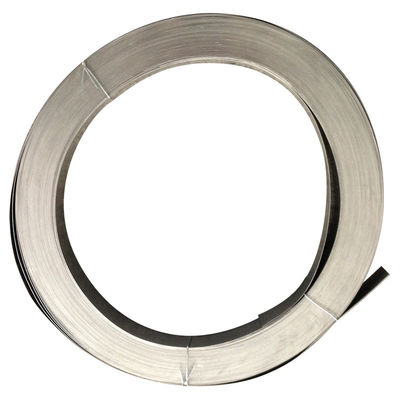

Ni60Cr15 Tubular Strip Nickel Chromium Iron Alloy

Name: Ni60Cr15 Tubular Strip Nickel Chromium Iron Alloy
Brand: Changzhou DLX Alloy Co., Ltd.
SKU: Ni60Cr15
Price: 35.00 USD
Availability: InStock

Brand Name:	DLX
Model Number:	Ni60Cr15
MOQ:	5
Payment Terms:	L/C,T/T,Western Union,MoneyGram
Supply Ability:	500 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

China Jiangsu

Certification:

CE,ROHS

Material:

Nickel, Chromium

Nickel(Min):

55%

Resistivity:

1.12+/-0.05

Tensile Strength:

637MPA

Elongtation:

≥20%

Application:

Heating, Resistivity

Condition:

Hard / Soft

Sureface:

Bright, Oxided, Acide

Delivery Time:

7-20 Days

Name:

Resistance Heating Strip

Packaging Details:

Spool package with Carton box, Coil package with polybag

Supply Ability:

500 tons per month

Highlight:

Ni60Cr15 Nickel Chromium Iron Alloy

Tubular Nickel Chromium

Strip Nickel Chromium Iron Alloy

Product Description

Ni60Cr15 Tubular Strip Nickel Chromium Iron Alloy 0

NiCr Series

Ni60Cr15 NiCr strip is high resistitivity alloy, it is suitable for temperature applications up to 1150°C. This alloy is characterized by high resistivity, good oxidation resistance, very good form stability, good ductility after use and excellent weldabilit. Ni60Cr15 is used for electric heating elements in domestic and industrial appliances. Typical applications: potentiometers, heavy-duty resistors, tubular heaters, electric furnaces, grills, hot plates, toasters, storage heaters, fan heaters, hand dryers, etc.

Common Name:Chromel C, Nikrothal 60, N6, HAI-NiCr 60, Tophet C, Resistohm 60, Cronifer II,Electroloy, Nichrome, Alloy C, Alloy 675,Nikrothal 6, MWS-675, Stablohm 675,NiCrC

Ni60Cr15 Nickel-Chromium Nickel alloy resistance heating flat wire, ribbon.

Nickel-chromium alloy performance tables

Performance material		Cr10Ni90	Cr20Ni80	Cr30Ni70	Cr15Ni60	Cr20Ni35	Cr20Ni30
Composition	Ni	90	Rest	Rest	55.0～61.0	34.0～37.0	30.0～34.0
	Cr	10	20.0～23.0	28.0～31.0	15.0～18.0	18.0～21.0	18.0～21.0
	Fe		≤1.0	≤1.0	Rest	Rest	Rest
Maximum temperature℃		1300	1200	1250	1150	1100	1100
Meltiing point ℃		1400	1400	1380	1390	1390	1390
Density g/cm3		8.7	8.4	8.1	8.2	7.9	7.9
Resistivity			1.09±0.05	1.18±0.05	1.12±0.05	1.00±0.05	1.04±0.05
μΩ·m,20℃
Elongation at rupture		≥20	≥20	≥20	≥20	≥20	≥20
Specific heat			0.44	0.461	0.494	0.5	0.5
J/g.℃
Thermal conductivity			60.3	45.2	45.2	43.8	43.8
KJ/m.h℃
Coefficient of lines expansion			18	17	17	19	19
a×10-6/
(20～1000℃)
Micrographic structure			Austenite	Austenite	Austenite	Austenite	Austenite
Magnetic properties			Nonmagnetic	Nonmagnetic	Nonmagnetic	Weak magnetic	Weak magnetic

The Form we could offer

Size Range
Wire	dia 0.03-7.5mm
	dia 8.0-12.0mm
Ribbon	(0.05-0.35)*(0.5-6.0)mm

Strip	(0.50-2.5)*(5-180)mm

Rod	8-50mm
