Ni30Cr20 DLX Alloy 637 MPA OhmAlloy104B NiCr Strip/foil/coil

Brand Name:	DLX
Model Number:	Ni30Cr20 coil
MOQ:	5
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

China Jiangsu

Certification:

CE,ROHS

Material:

Nickel, Chromium

Nickel(Min):

30%

Resistivity:

1.04+/-0.05

Tensile Strength:

637MPA

Elongtation:

≥20%

Application:

Heating, Resistivity

Condition:

Hard / Soft

Sureface:

Bright, Oxided, Acide

Delivery Time:

7-20 Days

Name:

Resistance Heating Strip

Packaging Details:

Spool package with Carton box, Coil package with polybag

Supply Ability:

500 tons per month

Highlight:

Ni30Cr20 NiCr Alloy

DLX Alloy

OhmAlloy104B NiCr Alloy

Product Description

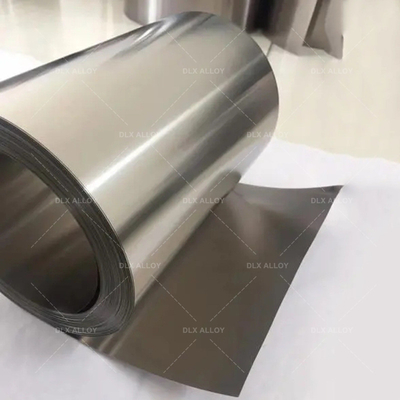

Ni30Cr20 DLX Alloy 637 MPA OhmAlloy104B NiCr Strip/foil/coil 0

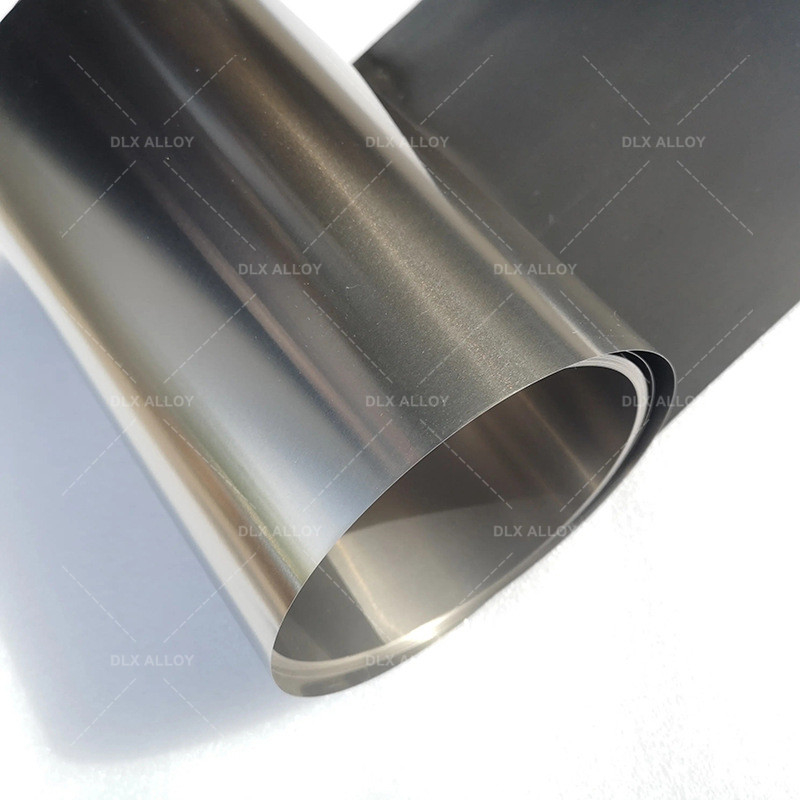

Ni30Cr20 DLX Alloy 637 MPA OhmAlloy104B NiCr Strip/foil/coil 1

NiCr Series

Ni30Cr20 is an austenitic nickel-chromium alloy suitable for temperature applications up to 1100°C. This alloy is characterized by high resistivity, good oxidation resistance, good ductility after use and excellent weldability. Ni35Cr20 is used for a wide range of electric heating elements in domestic appliances.

Typical applications: hot plates, heavy-duty rheostats, storage heaters, convection heaters, fan heaters, heating cables, electric blankets and pads, car seats, resistors, etc.

Common Name: OhmAlloy104B, Ni30Cr20,Nikrothal 30, N3, HAI-NiCr 30, Resistohm 30,30-20 Ni-Cr,Nikrothal 3

Ni30Cr20 Nickel-Chromium Nickel alloy resistance heating flat wire.

Nickel-chromium alloy performance tables

Performance material		Cr10Ni90	Cr20Ni80	Cr30Ni70	Cr15Ni60	Cr20Ni35	Cr20Ni30
Composition	Ni	90	Rest	Rest	55.0～61.0	34.0～37.0	30.0～34.0
	Cr	10	20.0～23.0	28.0～31.0	15.0～18.0	18.0～21.0	18.0～21.0
	Fe		≤1.0	≤1.0	Rest	Rest	Rest
Maximum temperature℃		1300	1200	1250	1150	1100	1100
Meltiing point ℃		1400	1400	1380	1390	1390	1390
Density g/cm3		8.7	8.4	8.1	8.2	7.9	7.9
Resistivity			1.09±0.05	1.18±0.05	1.12±0.05	1.00±0.05	1.04±0.05
μΩ·m,20℃
Elongation at rupture		≥20	≥20	≥20	≥20	≥20	≥20
Specific heat			0.44	0.461	0.494	0.5	0.5
J/g.℃
Thermal conductivity			60.3	45.2	45.2	43.8	43.8
KJ/m.h℃
Coefficient of lines expansion			18	17	17	19	19
a×10-6/
(20～1000℃)
Micrographic structure			Austenite	Austenite	Austenite	Austenite	Austenite
Magnetic properties			Nonmagnetic	Nonmagnetic	Nonmagnetic	Weak magnetic	Weak magnetic

The Form we could offer

Size Range
Wire	dia 0.03-7.5mm
	dia 8.0-12.0mm
Ribbon	(0.05-0.35)*(0.5-6.0)mm

Strip	(0.50-2.5)*(5-180)mm

Rod	8-50mm

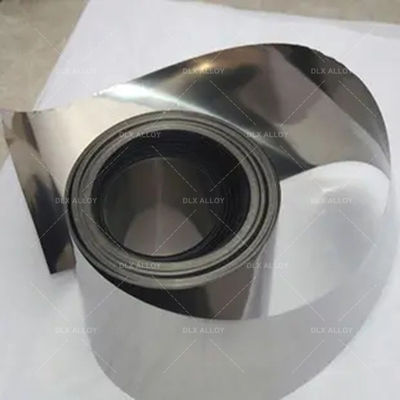

Ni30Cr20 DLX Alloy 637 MPA OhmAlloy104B NiCr Strip/foil/coil 7

contact us:

email:sales7@dlx-alloy.com

Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
Product Available Size:
Wires: Diameter0.5~7.5mm

Rods:Diameter8.0~200mm
Strip:Thickness0.5~2.5mm, Width5~180mm
Plate: Customized
Tube: Customized

After sale service:
24 hours on for after sale service
