0.05mmx0.05mm Nikrothal 80 Wire 12mm NiCr Alloy

Name: 0.05mmx0.05mm Nikrothal 80 Wire 12mm NiCr Alloy
Brand: Changzhou DLX Alloy Co., Ltd.
SKU: Ni80Cr20
Price: 35.00 USD
Availability: InStock

Brand Name:	DLX
Model Number:	Ni80Cr20
MOQ:	5
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

China Jiangsu

Certification:

CE,ROHS

Material:

Nickel, Chromium

Nickel(Min):

76%

Resistivity:

1.09+/-0.05

Tensile Strength:

637MPA

Elongtation:

≥20%

Application:

Heating, Resistivity

Condition:

Hard / Soft

Sureface:

Bright, Oxided, Acide

Delivery Time:

7-20 Days

Name:

Esistance Heating Flat Wire.

Packaging Details:

Spool package with Carton box, Coil package with polybag

Supply Ability:

500 tons per month

Highlight:

0.05mm NiCr Alloy

Nikrothal 80 Wire

12mm NiCr Alloy

Product Description

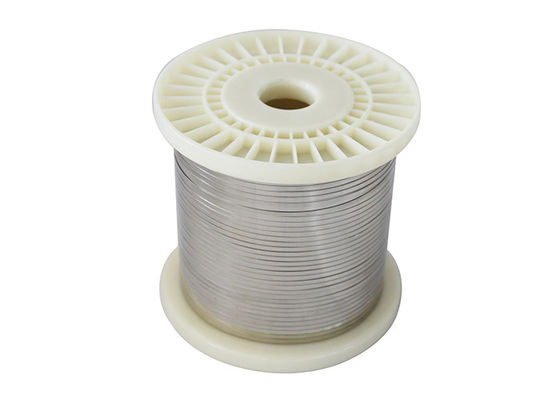

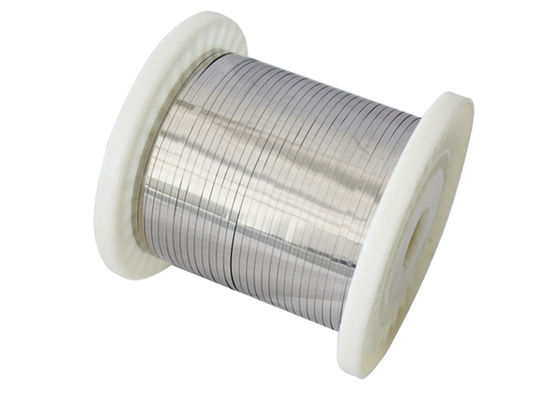

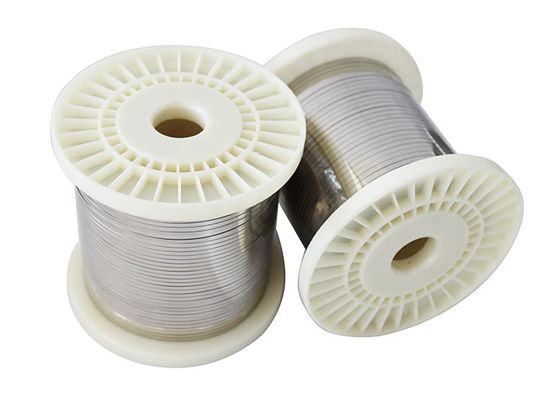

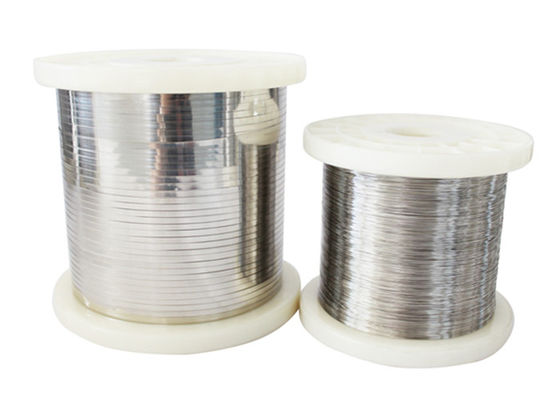

0.05mmx0.05mm Nikrothal 80 Wire 12mm NiCr Alloy 0

0.05mmx0.05mm Nikrothal 80 Wire 12mm NiCr Alloy 1

NiCr Series

Nickel-chromium, nickel, ferrochrome alloy wire with electric high temperature oxidation resistance, high strength, not soften and a series of advantages. When used in a long time, the same type and the permanent elongation is very small, which is more Cr20Ni80 alloy with excellent comprehensive properties, is to produce high-quality varieties of choice for electric components.

Common Name :

Nikrothal 8,MWS-650,NiCrA,Tophet A,HAI-NiCr 80,Chromel A,Alloy A,Alloy 650,N8,Resistohm 80, Stablohm 650,Nichorme V,Nikrothal 80,OhmAlloy109,Nicrove V, Brightray C, Cronix 80, Chromalloy, Chromel, and Gilphy 80

Ni80Cr20 Nickel-Chromium Nickel alloy resistance heating flat wire, ribbon

Nickel-chromium alloy performance tables

Performance material		Cr10Ni90	Cr20Ni80	Cr30Ni70	Cr15Ni60	Cr20Ni35	Cr20Ni30
Composition	Ni	90	Rest	Rest	55.0～61.0	34.0～37.0	30.0～34.0
	Cr	10	20.0～23.0	28.0～31.0	15.0～18.0	18.0～21.0	18.0～21.0
	Fe		≤1.0	≤1.0	Rest	Rest	Rest
Maximum temperature℃		1300	1200	1250	1150	1100	1100
Meltiing point ℃		1400	1400	1380	1390	1390	1390
Density g/cm3		8.7	8.4	8.1	8.2	7.9	7.9
Resistivity			1.09±0.05	1.18±0.05	1.12±0.05	1.00±0.05	1.04±0.05
μΩ·m,20℃
Elongation at rupture		≥20	≥20	≥20	≥20	≥20	≥20
Specific heat			0.44	0.461	0.494	0.5	0.5
J/g.℃
Thermal conductivity			60.3	45.2	45.2	43.8	43.8
KJ/m.h℃
Coefficient of lines expansion			18	17	17	19	19
a×10-6/
(20～1000℃)
Micrographic structure			Austenite	Austenite	Austenite	Austenite	Austenite
Magnetic properties			Nonmagnetic	Nonmagnetic	Nonmagnetic	Weak magnetic	Weak magnetic

The Form we could offer

Size Range
Wire	dia 0.03-7.5mm
	dia 8.0-12.0mm
Ribbon	(0.05-0.35)*(0.5-6.0)mm

Strip	(0.50-2.5)*(5-180)mm

Rod	8-50mm
