Product Details
Place of Origin: China
Brand Name: DLX
Model Number: Inconel X-750 wire
Payment & Shipping Terms
Minimum Order Quantity: 5
Packaging Details: Spool package with Carton box, Coil package with polybag
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per month
Material: |
Ni Cr Ti |
Nickel(Min): |
70% |
Magnetic Permeability: |
1.0035 |
Curie Temperature: |
-125 °C |
Density: |
8.28 G/cm3 |
CTE, Linear 20°C: |
12.6 µm/m-°C |
Condition: |
Hard / Soft |
Sureface: |
Bright,Oxided |
Delivery Time: |
7-50 Days |
Tensile Strength: |
760-1600MPA |
Melting Point: |
1390 - 1430℃ |
Specific Heat Capacity: |
0.431 J/g-°C |
Thermal Conductivity: |
12 W/m-K |
Elongation: |
30 % |
Name: |
Inconel X750 Wire |
Material: |
Ni Cr Ti |
Nickel(Min): |
70% |
Magnetic Permeability: |
1.0035 |
Curie Temperature: |
-125 °C |
Density: |
8.28 G/cm3 |
CTE, Linear 20°C: |
12.6 µm/m-°C |
Condition: |
Hard / Soft |
Sureface: |
Bright,Oxided |
Delivery Time: |
7-50 Days |
Tensile Strength: |
760-1600MPA |
Melting Point: |
1390 - 1430℃ |
Specific Heat Capacity: |
0.431 J/g-°C |
Thermal Conductivity: |
12 W/m-K |
Elongation: |
30 % |
Name: |
Inconel X750 Wire |

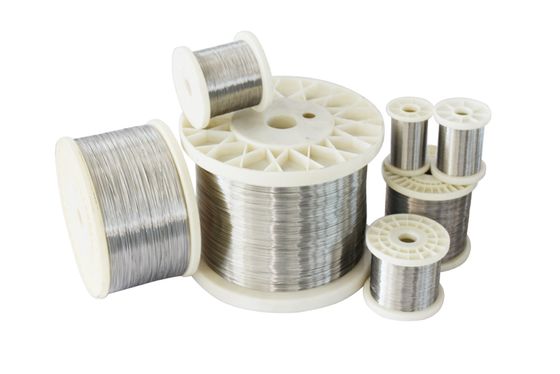

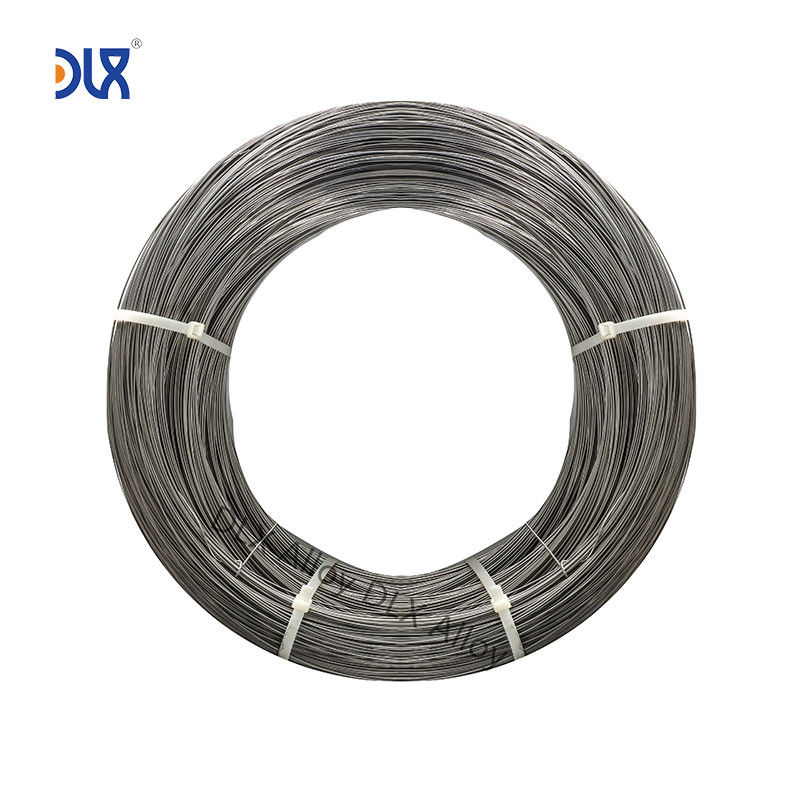

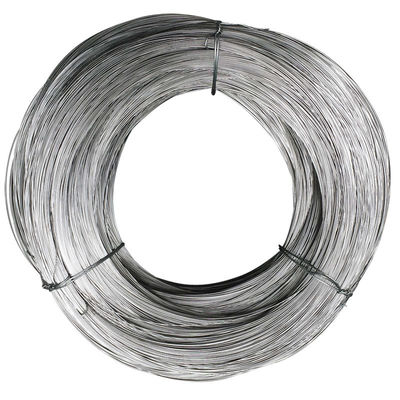

Inconel Alloy X-750, inconel x750 wire is a nickel-chromium austenitic alloy similar to Alloy 600 but made precipitation-hardenable by additions of aluminum and titanium. It has good resistance to corrosion and oxidation along with high tensile and creep-rupture properties at high temperatures to 1300°F (700°C). Extended applications that require high strength at temperatures beyond 1100°F (593°C) may require a solution treatment, with air cooling between intermediate and final aging.
This material has excellent relaxation resistance and is non-magnetic. It has good elevated temperature strength properties to 1300ºF (700°C) and oxidation resistance to 1800ºF (983˚C). Inconel® X-750 is resistant to a wide variety of industrial corrosives under both oxidizing and reducing conditions. This alloy also has excellent resistance to chloride stress corrosion cracking in the fully age hardened condition.
| Element | Ni +Co | Cr | Nb | Ti | C | Mn | Si | Cu | Al | S | Iron |
| Chemical Composition (%) |
70% Min |
14%- 17% |
0.7%- 1.2% |
2.25%- 2.75% |
0.08% max | 1% max | 0.5% max | 0.30% max | 0.4%-1.0% | 0.01% max | 5%-9% |
Some typical applications are:
| AMS Number | Alloy | Type | UNS | Cross Ref. Spec | Misc./Shape | |
|---|---|---|---|---|---|---|
| AMS 5542 Custom Tube | Inconel X750 | Nickel | N07750 | - | Custom Tube | |
| AMS 5542 Plate | Inconel X750 | Nickel | N07750 | - | Plate | |
| AMS 5542 Sheet | Inconel X750 | Nickel | N07750 | - | Sheet | |
| AMS 5542 Strip | Inconel X750 | Nickel | N07750 | - | Strip | |
