Ni3Fe6 Nickel Iron Alloy

Name: Ni3Fe6 Nickel Iron Alloy
Brand: Changzhou DLX Alloy Co., Ltd.
SKU: invar 36
Price: 30.00 USD
Availability: InStock

Brand Name:	DLX
Model Number:	invar 36
MOQ:	10
Price:	$20-$40
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	300 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certificate:

ISO9001

Shape:

Strip

Ni (Min):

Size:

Customized

Color:

Nickel,silver

Ultimate Strength (≥ MPa)::

490

Elongation (≥ %):

42 %

Brand Name::

DLX

Density::

8.1

Yield Strength::

240

Standard::

ASTM, ASME, GB, DIN Etc

Packaging Details:

packed with carton &polybag

Supply Ability:

300 tons per month

Highlight:

0.4mm Nickel Iron Alloy

1.3912 Iron Nickel

Ni3Fe6 Nickel Iron Alloy

Product Description

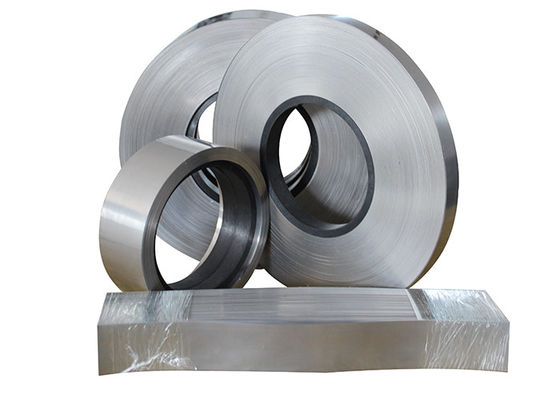

Ni3Fe6 Nickel Iron Alloy 0

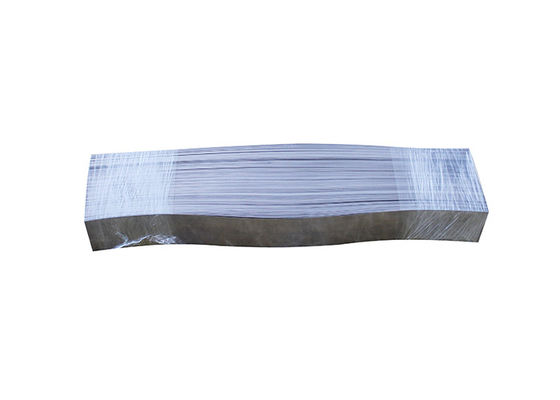

Ni3Fe6 Nickel Iron Alloy 1

Precisional alloy invar 36 W.Nr.1.3912 Ni3Fe6 foil/strip/tape

Precision alloy Invar 36, also known as FeNi36, is a nickel-iron, low-expansion alloy containing 36% nickel. Precision alloy invar 36 has a low coefficient of expansion from cryogenic temperatures to about 260°C. In the dry air at home temperature, precision alloy invar 36 has good resistance to corrosion. But precision ally invar 36 moist air, it may go corrosion.

Precision alloy Invar 36 is suitable for the applications who require low coefficient of expansion, such as production, storage and transportation of liquid gas, temperature regulation devices working below 200°C, aperture mask, unit frameworks working below -200°C and so on.

Product sizes are:

Invar Wire: 0.1mm-9mm
Invar Bar: 11mm-200mm
Invar Strip: 0.1mm-4.0mm*10mm-290mm
Sheets, Discs are also available per request

Precison alloy prcecision alloy precision alloy precision alloy

Chemical Composition

Grade	C%	Si%	P%	S%	Mn%	Ni%	Fe%
Invar 36	Max 0.05	Max 0.30	Max 0.020	Max 0.020	0.20-0.60	35.0-37.0	Bal.

Specifications

Grade	UNS	Werkstoff Nr.
Invar 36	K93600	1.3912

Physical Properties

Grade	Density	Melting Point
Invar 36	8.1 g/cm3	1430°C

Coefficient of Expansion

Alloy	Linear Coefficient of Thermal Expansion a,10-6/degree
Alloy	20-50	20-100	20-200	20-300	20-400	20-500
Invar 36	0.6	0.8	2.0	5.1	8.0	10.0

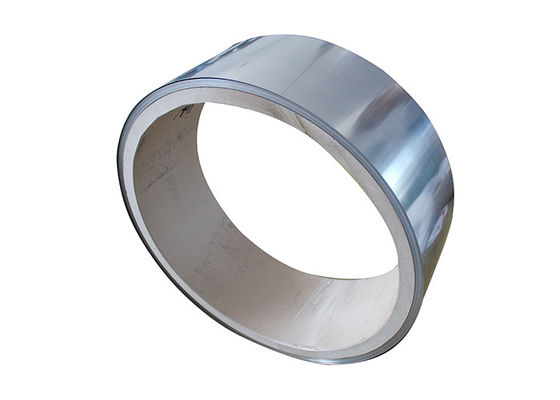

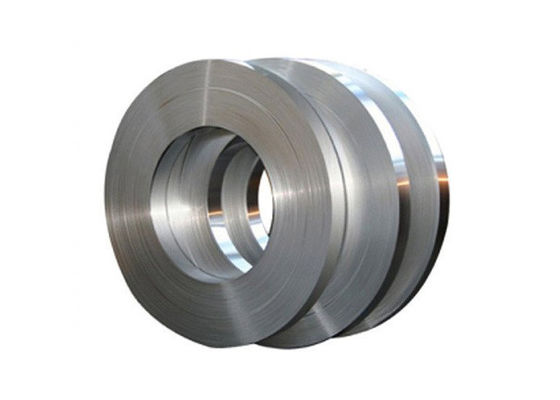

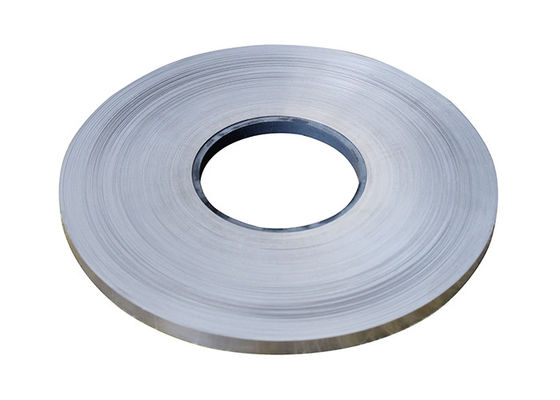

Ni3Fe6 Nickel Iron Alloy 2 Ni3Fe6 Nickel Iron Alloy 3 Ni3Fe6 Nickel Iron Alloy 4

Invar Applied field:

Invar 36 suits for need to apply ultra-low coefficient of heat expansion environment.

Typical applications are as follows:
1.Liquefied gas production, storage and transport

2.The measurement and control instruments work temperature lower than 200°C, such as temperature regulating device
3.Metals and other materials use the screw connector bush
4.Bimetal and bimetallic temperature controller
5.Film framework
6.Shadow mask
7.CRP components of the aviation industry temper Die
8.lower than -200°C the satellite and missile electronic control unit framework
9.The auxiliary tube of the electromagnetic lens in the laser control device
