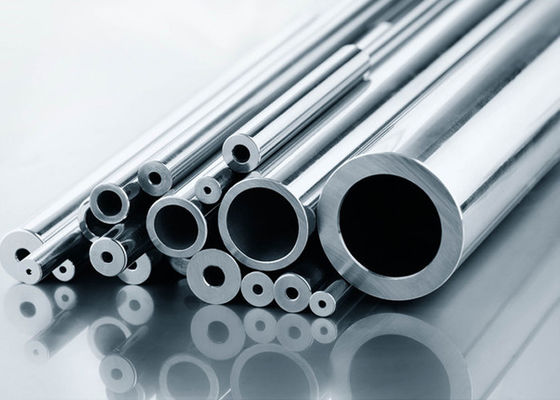

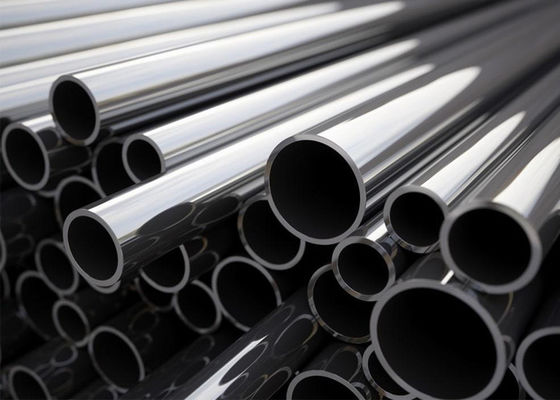

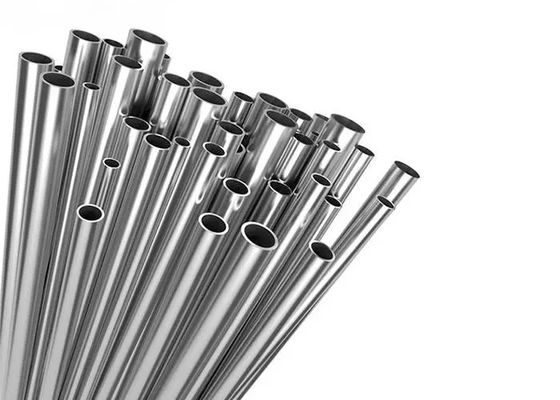

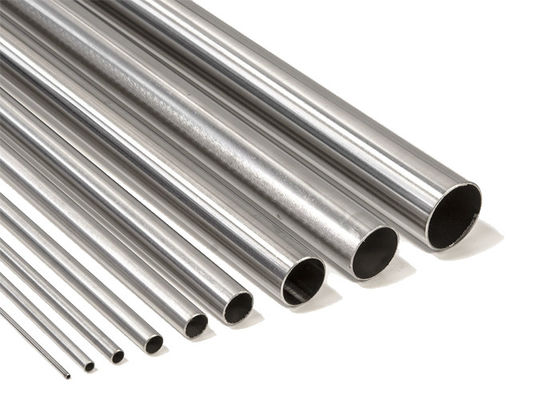

AMS 4574 Monel Alloy

Alloy 400 Tube is a single phase, solid-solution nickel-copper alloy that offers superior resistance to many corrosive environments over temperatures ranging from sub-zero to 800°F. This alloy is only hardenable through cold working, rather than heat treatment. The Curie Temperature of this alloy lies in the ambient temperature range and is affected by variations in the alloy’s chemical composition. Caution is advised in applications where strong nonmagnetic characteristics are desired. The ratio of copper to nickel in alloy 400 is almost identical to that found in the ore the metal is derived from. This alloy was first patented over 100 years ago, and it continues to be one of the most commonly used corrosion resistant alloys commercially produced.

• Chemical Properties of Monel 400

• Application

Alloy 400 has been widely used in a variety of industries, and has been particularly useful in the marine industry and chemical processing industry. Typical applications include pumps and valves, propeller shafts, marine fixtures and fasteners, electronic components, springs, chemical processing equipment, fresh and salt water tanks, process vessels and piping, boiler feedwater heaters and other heat exchangers.

• ,Type we could offer

  AMS Number	Alloy	Type	UNS	Cross Ref. Spec	Misc./Shape
  AMS 4544 Plate	Monel 400	Nickel Copper	N04400	QQ-N-281	Plate
  AMS 4544 Sheet	Monel 400	Nickel Copper	N04400	QQ-N-281	Sheet
  AMS 4544 Strip	Monel 400	Nickel Copper	N04400	QQ-N-281	Strip
  AMS 4574	Monel 400	Nickel Copper	N04400	-	Tubing
  AMS 4675 Bar	Monel 400	Nickel Copper	N04400	ASTM B 164	Bar
  AMS 4730	Monel 400	Nickel Copper	N04400	QQ-N-281	Wire
  AMS 4731 Ribbon	Monel 400	Nickel Copper	N04400	-	Ribbon
  AMS 4731 Wire	Monel 400	Nickel Copper	N04400	-	Wire
