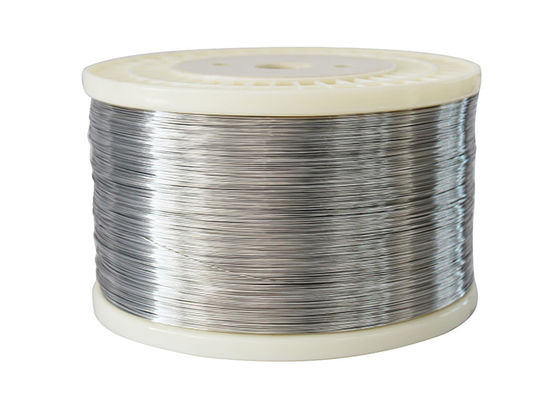

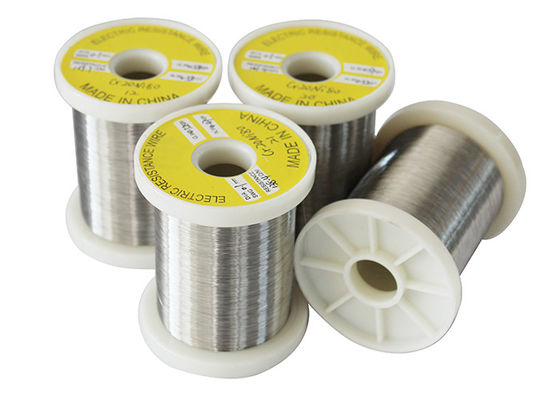

Ni70Cr30 Nicr 8020 Electric 0.2mm Nickel Chromium Wire

Name: Ni70Cr30 Nicr 8020 Electric 0.2mm Nickel Chromium Wire
Brand: Changzhou DLX Alloy Co., Ltd.
SKU: Ni70Cr30
Price: 35.00 USD
Availability: InStock

Brand Name:	DLX
Model Number:	Ni70Cr30
MOQ:	5
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

China Jiangsu

Certification:

CE,ROHS

Material:

Nickel, Chromium

Nickel(Min):

66%

Resistivity:

1.18+/-0.05

Tensile Strength:

637MPA

Elongtation:

≥20%

Application:

Heating, Resistivity

Condition:

Hard / Soft

Sureface:

Bright, Oxided, Acide

Delivery Time:

7-20 Days

Name:

Resistance Heating Wire

Packaging Details:

Spool package with Carton box, Coil package with polybag

Supply Ability:

500 tons per month

Highlight:

Ni70Cr30 Nickel Chromium Wire

Nicr 8020

0.2mm Nickel Chromium Wire

Product Description

Ni70Cr30 Nicr 8020 Electric 0.2mm Nickel Chromium Wire 0

Ni70Cr30 Nicr 8020 Electric 0.2mm Nickel Chromium Wire 1

NiCr Series

Ni70Cr30 is an austenitic nickel-chromium alloy suitable for temperature applications up to 1250°C. High chromium content (30% in average) provides very good life time, especially in the furnace applications.

Ni70Cr30 is characterized by high resistivity, good oxidation resistance, good ductility after use and excellent weldability. Alloy is not subject to “green rot” and is particularly well suited for reducing and oxidizing atmospheres.

Ni70Cr30 is used for electric heating elements in industrial furnaces. Typical applications are: electric and enamelling furnaces, storage heaters, furnaces and kilns with a changing atmospheres.

Nickel-chromium alloy performance tables

Performance material		Cr10Ni90	Cr20Ni80	Cr30Ni70	Cr15Ni60	Cr20Ni35	Cr20Ni30
Composition	Ni	90	Rest	Rest	55.0～61.0	34.0～37.0	30.0～34.0
	Cr	10	20.0～23.0	28.0～31.0	15.0～18.0	18.0～21.0	18.0～21.0
	Fe		≤1.0	≤1.0	Rest	Rest	Rest
Maximum temperature℃		1300	1200	1250	1150	1100	1100
Meltiing point ℃		1400	1400	1380	1390	1390	1390
Density g/cm3		8.7	8.4	8.1	8.2	7.9	7.9
Resistivity			1.09±0.05	1.18±0.05	1.12±0.05	1.00±0.05	1.04±0.05
μΩ·m,20℃
Elongation at rupture		≥20	≥20	≥20	≥20	≥20	≥20
Specific heat			0.44	0.461	0.494	0.5	0.5
J/g.℃
Thermal conductivity			60.3	45.2	45.2	43.8	43.8
KJ/m.h℃
Coefficient of lines expansion			18	17	17	19	19
a×10-6/
(20～1000℃)
Micrographic structure			Austenite	Austenite	Austenite	Austenite	Austenite
Magnetic properties			Nonmagnetic	Nonmagnetic	Nonmagnetic	Weak magnetic	Weak magnetic

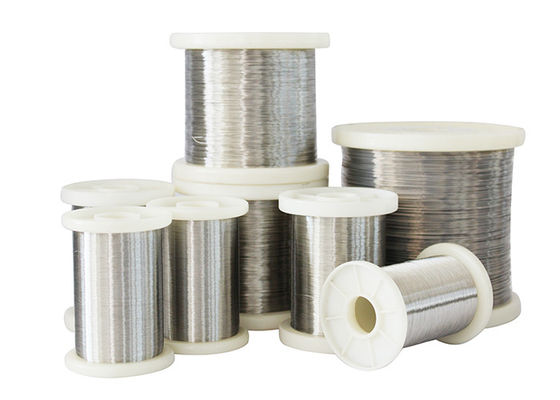

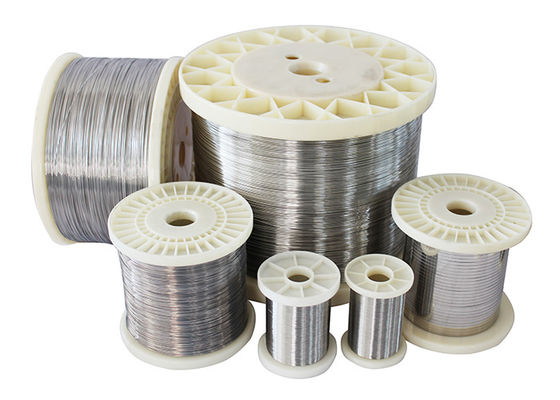

The Form we could offer

Size Range
Wire	dia 0.03-7.5mm
	dia 8.0-12.0mm
Ribbon	(0.05-0.35)*(0.5-6.0)mm

Strip	(0.50-2.5)*(5-180)mm

Rod	8-50mm
