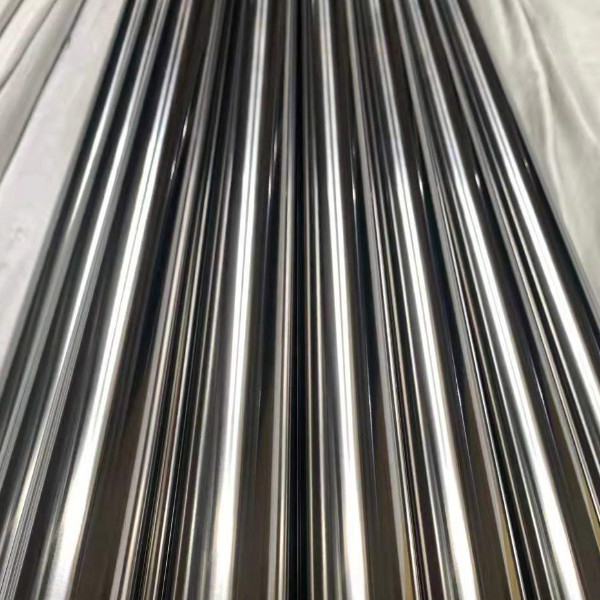

Factory High Quality Monel 400 Alloy Nickel Alloy Round Bar 10mm 15mm Monel 400 Rod

Product Details

Place of Origin: China

Brand Name: DLX

Certification: CE,ROHS

Model Number: Monel 400 rod

Payment & Shipping Terms

Minimum Order Quantity: 5

Packaging Details: Spool package with Carton box, Coil package with polybag

Delivery Time: 5-21 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 300 tons per month

Get Best Price
Contact Now
Specifications
Highlight:

15mm Alloy Round Bar

,

10mm Alloy Round Bar

,

15mm Monel 400 Rod

Material:
Nickel Copper
Nickel(Min):
63%
Curie Temperature:
21-49℃
Density:
8.05g/cm3
Application:
Anti-corrosion
Condition:
Hard / Soft
Sureface:
Bright,Oxided
Delivery Time:
7-50 Days
Melting Point:
1288-1343℃
Name:
Monel 400 Rod
Material:
Nickel Copper
Nickel(Min):
63%
Curie Temperature:
21-49℃
Density:
8.05g/cm3
Application:
Anti-corrosion
Condition:
Hard / Soft
Sureface:
Bright,Oxided
Delivery Time:
7-50 Days
Melting Point:
1288-1343℃
Name:
Monel 400 Rod
Description
Factory High Quality Monel 400 Alloy Nickel Alloy Round Bar 10mm 15mm Monel 400 Rod

Factory High Quality Monel 400 Alloy Nickel Alloy Round Bar 10mm 15mm Monel 400 Rod



Product Description:
We produce High Temperature Superalloy round rods.
We melt good quality Ni-based Alloy round rods with Vacuum Furnaces and Induction Furnaces.
We can cast and machine the hard Nickel-based Alloy round rods as per the drawings.
We would like to help select suitable Ni-based Alloy Grade as per your specific working condition.
Nickel-based alloys have been in use for producing various components such as vanes or combustion chambers.The material can be implemented as wrought or as precision-cast parts or as centrifugal cast parts.The design of Nickel superalloys, which is aimed at an enhancement of both their oxidation resistance and their hot corrosion resistance, has received considerable impetus recently, especially since the advent of overlay coating techniques and the extensive studies which have been undertaken to elucidate the hot corrosion mechanisms and the effect of alloying elements.
Material:
Alloy : Alloy 20/28/31;
Hastelloy: Hastelloy B / B-2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N;
Haynes: Haynes 230/556/188;
Inconel: Inconel 100/600/601/602CA/617/625713/718738/X-750,Carpenter 20;
Incoloy: Incoloy 800/800H/800HT/825/925/926;
GH: GH2132,GH3030,GH3039,GH3128,GH4180,GH3044
Monel: Monel 400/K500
Nitronic: Nitronic 40/50/60;
Nimonic: Nimonic 75/80A/90
Standard:
AISI,ASTM,DIN,EN,SUS,UNS etc
Technique:
Cold rolled,hot rolled,forged
The lowest level of Nickel ≥30%
Name

Monel 400(N04400)
Monel K500(N05500)


Chemmical

Composition wt.%
Ni
63.0-67.0
63.0-67.0
Fe
≤2.00
≤2.00
C
≤0.03
≤0.25
Mn
≤1.50
≤0.15
P
-
-
Si
≤0.50
≤1.00
Cu
28.0-34.0
margin
S
-
≤0.01
Cr
-
-
Al
-
2.0-4.0
TI
-
0.25-1.00
Others
-
-



Product name
High Strength NO4400 Nickel Alloy Rod Monel 400 Nickel Bar
Standard
ASTM,ASME
Diameter
3-480mm or customized
Length
3000mm,4000mm,5800mm,6000mm,12000mm, or as required
Density
8.9cm3
Nickel Content
58%
Lead Time
7-15 working days after the receipt of 30% deposit
Payment Terms
30% TT for deposit,70% TT/LC at sight balance before shipment
Price terms
FOB EXW CIF CFR
Packing
Wooden Pallet or according to customer's requirements



Factory High Quality Monel 400 Alloy Nickel Alloy Round Bar 10mm 15mm Monel 400 Rod 0Factory High Quality Monel 400 Alloy Nickel Alloy Round Bar 10mm 15mm Monel 400 Rod 1

Factory High Quality Monel 400 Alloy Nickel Alloy Round Bar 10mm 15mm Monel 400 Rod 2Factory High Quality Monel 400 Alloy Nickel Alloy Round Bar 10mm 15mm Monel 400 Rod 3





  • Application

. Sour-gas service applications
. Oil and gas production safety lifts and valves
. Oil-well tools and instruments like drill collars
. Oil well industry
. Doctor blades and scrapers
. Chains, cables, springs, valve trim, fasteners for marine service
. Pump shafts and impellers in marine service

Factory High Quality Monel 400 Alloy Nickel Alloy Round Bar 10mm 15mm Monel 400 Rod 4

Mechanical Properties

Typical Room Temperature Tensile Properties of Annealed Material

Product Form Condition Tensile (ksi) .2% Yield (ksi) Elongation % Hardness
Rod & Bar Hot-Finished/Aged 140-190 100-150 30-20 27-38 HRC
Rod & Bar Hot Finished/Annealed 90-110 40-60 45-25 75-90 HRB
Rod & Bar Hot Finished/Annealed/Aged 130-165 85-120 35-20 24-35 HRC
Rod & Bar Cold-Drawn/Aged 135-185 95-160 30-15 25-41 HRC
Rod & Bar Cold-Drawn/Annealed/Aged 130-190 85-120 30-20 24-35 HRC
Plate ot-Finished/Aged 140-180 100-135 30-20 27-37 HRC
Sheet Cold-Rolled/Annealed 90-105 40-65 45-25 85 HRB Max

Factory High Quality Monel 400 Alloy Nickel Alloy Round Bar 10mm 15mm Monel 400 Rod 5Factory High Quality Monel 400 Alloy Nickel Alloy Round Bar 10mm 15mm Monel 400 Rod 6Factory High Quality Monel 400 Alloy Nickel Alloy Round Bar 10mm 15mm Monel 400 Rod 7

contact us:

email:sales7@dlx-alloy.com

Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
Product Available Size:
Wires: Diameter0.5~7.5mm

Rods:Diameter8.0~200mm
Strip:Thickness0.5~2.5mm, Width5~180mm
Plate: Customized
Tube: Customized
