Ni Fe Cr Material Incoloy 800 / 800H / 800HT Alloy Wire

Name: Ni Fe Cr Material Incoloy 800 / 800H / 800HT Alloy Wire
Brand: Changzhou DLX Alloy Co., Ltd.
SKU: incoloy 800H
Price: 149.30 USD
Availability: InStock

Brand Name:	DLX
Model Number:	incoloy 800H
MOQ:	5
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	300 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Material:

Ni Fe Cr

Nickel(Min):

30%

Coefficient Of Expansion:

14.4 μm/m °C (20 – 100°C)

Specific Heat:

460 J/kg•°C

Density:

7.94 G/cm3

Curie Temperature:

-115°C

Condition:

Hard / Soft

Sureface:

Bright,Oxided

Delivery Time:

7-50 Days

Thermal Conductivity:

11.5 W/m-K

Melting Point:

1385°C

Elongation:

30 %

Packaging Details:

wooden case, woven polybag for incoloy 800 wire

Supply Ability:

300 tons per month

Highlight:

Incoloy 800 Alloy Wire

Incoloy 800H Alloy Wire

30% Ni Incoloy Alloy Wire

Product Description

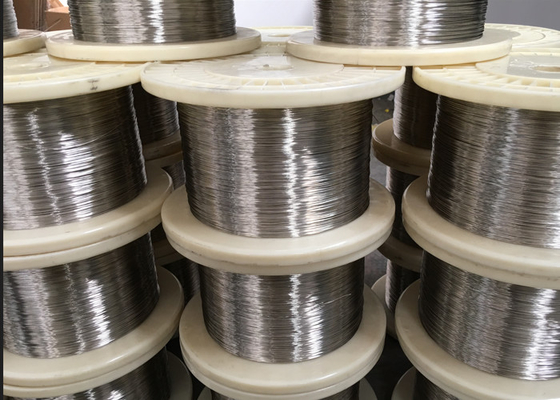

Ni Fe Cr Material Incoloy 800 / 800H / 800HT Alloy Wire 0

Prime Quality Incoloy 800 / 800H / 800HT Alloy Wire Price Manufacturer

Ni Fe Cr Material Incoloy 800 / 800H / 800HT Alloy Wire 1

Inconel Series

Features: Incoloy 800 wire has a restricted carbon content range of 0.05 to 0.10%, which is in the upper portion of that of Incoloy 800, and is annealed at 1149 to 1177℃ (Incoloy 800 is annealed at 983 to 1038℃). These differences impart it to have higher stress rupture and creep properties than Incoloy 800.

Applications: Chemical and petrochemical process piping, high temperature heat exchangers, furnace components, carburizing equipment, heating-element sheathing, and nuclear power steam superheating tubing.

Chemical Properties of Incoloy 800H

Incoloy	Ni	Cr	Fe	C	Mn	S	Si	Cu	Al	Ti
800H	30.0-35.0	19.0-23.0	39.5min	0.10max.	1.50max.	0.015max.	1.0max.	0.75max.	0.15-0.60	0.15-0.60

Application

Some typical applications are:

Heat-treating equipment such as baskets, trays, and fixtures.
Chemical and petrochemical processing,
Heat exchangers and other piping systems in nitric acid media especially where resistance to chloride stress-corrosion cracking is required.
Nuclear power plants, it is used for steam-generator tubing.
Domestic appliances for sheathing of electric heating elements.
Production of paper pulp, digester-liquor heaters are often made of alloy 800.
Petroleum processing, the alloy is used for heat exchangers that air cool the process stream.

,Type we could offer

AMS Number	Alloy	Type	UNS	Cross Ref. Spec	Misc./Shape
AMS 5766 Bar	Incoloy 800H	Nickel	N08810	-	Bar
AMS 5766 Custom Tube	Incoloy 800H	Nickel	N08810	-	Custom Tube
AMS 5871 Plate	Incoloy 800H	Nickel	N08810	-	Plate
AMS 5871 Sheet	Incoloy 800H	Nickel	N08810	-	Sheet
AMS 5871 Strip	Incoloy 800H	Nickel	N08810	-	Strip

Ni Fe Cr Material Incoloy 800 / 800H / 800HT Alloy Wire 7
