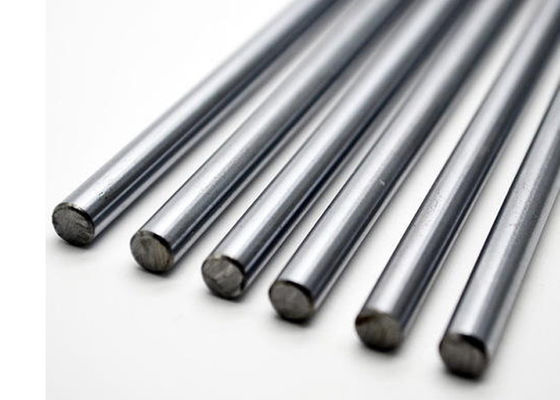

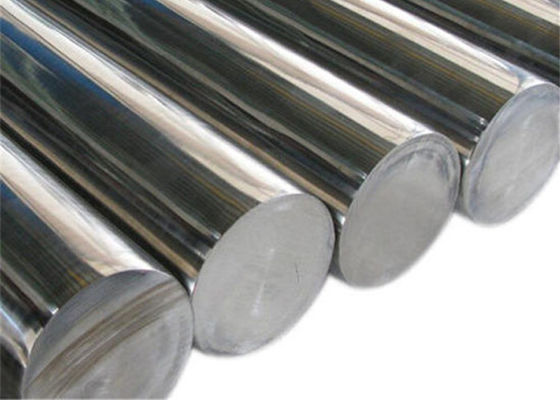

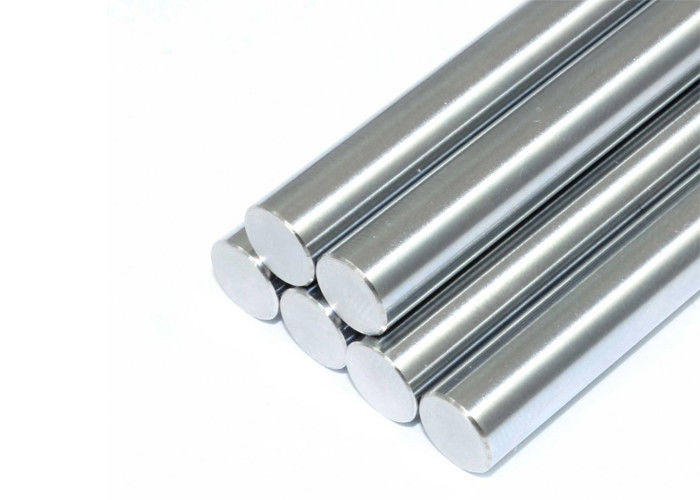

Hard UNS N06600 2.4816 Alloy 600 Soft Inconel 600 Rod
Product Details:
| Place of Origin: | China |
| Brand Name: | DLX |
| Model Number: | Inconel 600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Packaging Details: | Spool package with Carton box, Coil package with polybag |
| Delivery Time: | 5-21 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 tons per month |
|
Detail Information |
|||
| Material: | Nickel Chromium Iron | Nickel(Min): | 72% |
|---|---|---|---|
| Specific Heat: | 444 J/kg-°C | Permeability At 200 Oersted (15.9 KA/m): | 1.010 |
| Density: | 8.47 G/cm3 | Condition: | Hard / Soft |
| Sureface: | Bright,Oxided | Delivery Time: | 7-50 Days |
| Melting Range: | 1354-1413 ℃ | ||
| High Light: | 2.4816 Inconel 600 Rod,Inconel 600 Material Inconel Metal,N06600 Inconel 600 Rod |
||
Product Description
- Inconel Series
INCONEL (nickel-chromium-iron) alloy 600 (UNS N06600/W.Nr. 2.4816) is a standard engineering material for applications which require resistance to corrosion and heat. The alloy also has excellent mechanical properties and presents the desirable combination of high strength and good workability. The limiting chemical composition of INCONEL alloy 600 is shown in Table 1. The high nickel content gives the alloy resistance to corrosion by many organic and inorganic compounds and also makes it virtually immune to chloride-ion stress-corrosion cracking. Chromium confers resistance to sulfur compounds and also provides resistance to oxidizing conditions at high temperatures or in corrosive solutions. The alloy is not precipitation hardenable; it is hardened and strengthened only by cold work. The versatility of INCONEL alloy 600 has led to its use in a variety of applications involving temperatures from cryogenic to above 2000°F (1095°C).
-
Chemical Properties of Inconel 600
| Element | Percent |
| Nickel (plus Cobalt) (Min) | 72 |
| Chromium | 14-17 |
| Iron | 6-10 |
| Carbon (Max) | .15 |
| Manganese (Max) | 1 |
| Sulfur (Max) | .015 |
| Silicon (Max) | .5 |
| Copper (Max) | .5 |
- Application
Some typical applications are:
- Barge and tank truck liners
- Carburizing atmospheres
- Ethylene dichloride crackers
- Furnace trays, mufflers, hangers
- Gasoline stabilizer production
- MgCl2 evaporates
- Phenol condensers
- Soap manufacture
- Titanium dioxide
- Vegetable and fatty acid vessels
- ,Type we could offer
AMS Number Alloy Cross Ref. Spec Misc./Shape AMS 5540 Plate Inconel 600 - Plate AMS 5540 Sheet Inconel 600 - Sheet AMS 5540 Strip Inconel 600 - Strip AMS 5580 Custom Tube Inconel 600 - Custom Tube AMS 5580 Tubing Inconel 600 - Tubing AMS 5665 Bar Inconel 600 - Bar AMS 5665 Custom Tube Inconel 600 - Custom Tube AMS 5665 Ring Inconel 600 - Ring AMS 5961 Inconel 600 - Wire
