Resistance To Saltwater Corrosion Monel 400 Alloy Wires For Marine Industry Application

Resistance To Saltwater Corrosion Monel 400 Alloy Wires For Marine Industry Application

Brand Name: DLX
Model Number: Monel 400
MOQ: 5
Price: $30-$50
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 tons per month
Detail Information
Place of Origin:
China Jiangsu
Certification:
CE,ROHS
Material:
Nickel Copper
Nickel(Min):
63%
Curie Temperature:
21-49℃
Density:
8.05g/cm3
Application:
Anti-corrosion
Condition:
Hard / Soft
Sureface:
Bright,Oxided
Delivery Time:
7-50 Days
Melting Point:
1288-1343℃
Name:
Monel 400 Wire
Packaging Details:
Spool package with Carton box, Coil package with polybag for monel 400 wire
Supply Ability:
500 tons per month
Highlight:

Monel 400 Alloy Wires

,

Marine Industry Monel 400 Wires

,

Saltwater Corrosion Resistant Monel Alloy

Product Description

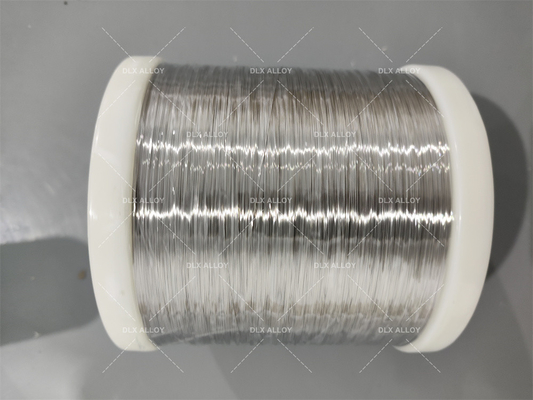

Resistance To Saltwater Corrosion Monel 400 Alloy Wires For Marine Industry Application 0

Resistance To Saltwater Corrosion Monel 400 Alloy Wires For Marine Industry Application
Resistance To Saltwater Corrosion Monel 400 Alloy Wires For Marine Industry Application 1


  • Monel Series

Monel 400 is a nickel based alloy material with excellent corrosion resistance in seawater, chemical solvents, ammonia sulfur chlorine, hydrogen chloride, various acidic media such as sulfuric acid, hydrofluoric acid, hydrochloric acid, phosphoric acid, organic acids, alkaline media, salts, and molten salts. At the same time, it has good mechanical properties and a wide range of temperatures from low to high, with good welding performance and medium to high strength.




  • Chemical Properties of Monel 400

Ni Cu Al Ti C Mn Fe S Si
63.0-70.0 27-33 2.30-3.15 0.35-0.85 0.25 max 1.5 max 2.0 max 0.01 max 0.50 max

  • Application

1. Marine and Offshore: Monel 400 wire is extensively used in marine and offshore applications, including seawater desalination plants, offshore platforms, and marine equipment.

2. Chemical Processing: Monel 400 wire is widely employed in the chemical industry for handling corrosive chemicals, including sulfuric acid, hydrofluoric acid, and alkaline solutions.

3. Oil and Gas: Monel 400 wire finds application in the oil and gas industry, particularly in offshore drilling and production operations.

4. Aerospace: Monel 400 wire is utilized in various aerospace applications, including aircraft fuel systems, exhaust components, and engine parts.

5. Electrical and Electronic: Monel 400 wire's low magnetic permeability and excellent electrical conductivity make it valuable in electrical and electronic applications.




  • Mechanical Properties

    Typical Room Temperature Tensile Properties of Annealed Material

    Product Form Condition Tensile (ksi) .2% Yield (ksi) Elongation % Hardness
    Rod & Bar Hot-Finished/Aged 140-190 100-150 30-20 27-38 HRC
    Rod & Bar Hot Finished/Annealed 90-110 40-60 45-25 75-90 HRB
    Rod & Bar Hot Finished/Annealed/Aged 130-165 85-120 35-20 24-35 HRC
    Rod & Bar Cold-Drawn/Aged 135-185 95-160 30-15 25-41 HRC
    Rod & Bar Cold-Drawn/Annealed/Aged 130-190 85-120 30-20 24-35 HRC
    Plate ot-Finished/Aged 140-180 100-135 30-20 27-37 HRC
    Sheet Cold-Rolled/Annealed 90-105 40-65 45-25 85 HRB Max

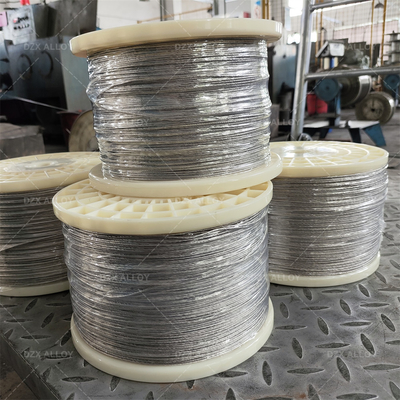

    Resistance To Saltwater Corrosion Monel 400 Alloy Wires For Marine Industry Application 2Resistance To Saltwater Corrosion Monel 400 Alloy Wires For Marine Industry Application 3
