Product Details
Place of Origin: China
Brand Name: DLX
Certification: CE,ROHS
Model Number: 1j85
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $30-$55
Packaging Details: Standard Export Wooden Cases Ex.Gross Weight Under 20kg=Carton Box/Gross Weight over 20 kg=Plywood Box Or as per Request for 1j85
Delivery Time: 5-21 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200 tons per month
Material:: |
NiFe |
Certificate: |
ISO9001 |
Shape: |
Wire, Strip, Foil, Sheet |
Resistivity:: |
0.56 |
Density:: |
8.75g/cm3 |
Size: |
Customized |
Standard:: |
GB/ASTM/AISI/ASME |
Condition:: |
Bright, Annealed, Soft |
Application:: |
Industrial Magnet |
Curie Point:: |
400℃ |
HCR:: |
30 |
Feature:: |
High Initial Permeability |
Material:: |
NiFe |
Certificate: |
ISO9001 |
Shape: |
Wire, Strip, Foil, Sheet |
Resistivity:: |
0.56 |
Density:: |
8.75g/cm3 |
Size: |
Customized |
Standard:: |
GB/ASTM/AISI/ASME |
Condition:: |
Bright, Annealed, Soft |
Application:: |
Industrial Magnet |
Curie Point:: |
400℃ |
HCR:: |
30 |
Feature:: |
High Initial Permeability |
Precision alloys include soft magnetic alloys and expansion alloys which have special physical and mechanical properties, and are extensively applied in the key elements and devices of precision motor, electric appliance, instruments and meters,telecommunications equipment.
Physical Properties (Annealed Condition)
Specific Gravity - 8.7g/cm
Curie Temperature - 830°F (410°C)
Electrical Resistivity, 349 ohm circ mil/foot 0.55 ohm mm²m
Density lb/cu.in. - 316
Thermal Conductivity - 134 btu-inch/ft hour °F 0.32 W/cm °C
Coefficient of Thermal Expansion, in./in. °F x 10 (-******)
7.2in/in °F x 10-6 between 70 and 400F
13cm/cm/ °C 10-6 between 30 and 204 °C Precision alloy Precision alloy Precision alloy Precision alloy Precision alloy Precision alloy Precision alloy Precision alloy
Fe-Ni Soft Magnetic Alloy (GBn198-1988)
Supermalloy
Chinese 1J85
Ni80Mo5
precision alloy precision alloy precision alloy
| The Chemical Composition of Supermalloy |
| Grade | C≤ | P≤ | S≤ | Cu≤ | Si | Mn | Mo | Ni | Fe |
| 1J85 | 0.03 | 0.02 | 0.02 | 0.20 | 0.15~0.3 | 0.30~0.60 | 4.80~5.20 | 79.0~81.0 | Banlance |
| The Physical Property of Supermalloy |
| Grade | Resistivity(μΩ.m) | Density(g/cm3) | Curie Point ℃ | High Saturated magneto-striction coefficient λθ/10-6 |
| 1J85 | 0.56 | 8.75 | 400 | 0.5 |
| Application of Supermalloy |
Precision Supermalloy alloy is used in manufacturing components for radio engineering,telephony and telemechanics instruments.
PRODUCT APPLICATION
Permalloy
Permalloy is used in transformer laminations and magnetic recording head sensors,in its initial application,permalloy was wrapped around the insulated copper conductors of telecommunication cables,reducing signal distortion through improved inductive compensation of cable capacitive reactance.
mumetal
High performance magnetic cores such as toroids and stacked laminations
Magnetic shielding to protect sensitive components from extraneous magnetic fields
Magnetic sensors
Current sensors
Any delicate application requiring high permeability magnetic material, with a low coercive field and low losses, in the range from low frequency up to 1MHz
contact us:
email:sales7@dlx-alloy.com
Oem service:
Welcome customized size
We are experience factory for OEM&ODM service

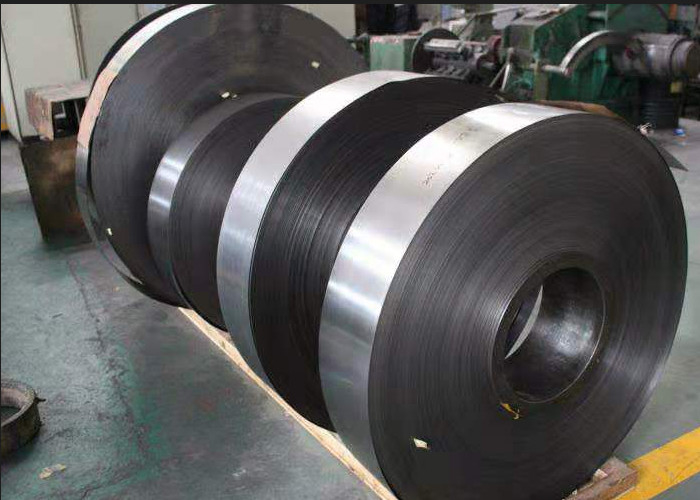

Product Available Size:
Wires: Diameter0.5~7.5mm
Rods:Diameter8.0~200mm
Strip:Thickness0.5~2.5mm, Width5~180mm
Plate: Customized
Tube: Customized
