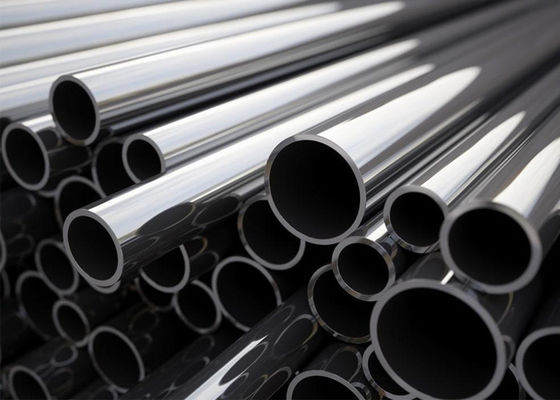

N06617 Nickel Chromium Iron Alloy

Place of Origin China
Brand Name DLX
Model Number Inconel 617 tube
Minimum Order Quantity 5
Packaging Details Inconel 617 tube packed in woodencase
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 300 tons per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Delivery Time 7-50 Days Material Ni, Cr, Co, Mn
Nickel(Min) 44.5% Specific Heat 419 J/kg-°C
Electrical Resistivity 26°C 1.22 µΩ-m . Density 8.36 G/cm3
Condition Hard / Soft Sureface Bright,Oxided
Melting Range 1332-1380 ℃ Product Name China Factory Inconel 617 UNS N06617 Nickel Chromium Alloy Tube Price Per Kg
Highlight

AMS 5887 Nickel Chromium Iron Alloy

,

Inconel 67 Nickel Chromium Alloy

,

Tube Nickel Chromium Iron Alloy

Leave a Message
Product Description

N06617 Nickel Chromium Iron Alloy 0


N06617 Nickel Chromium Iron Alloy 1


  • Inconel Series

Inconel 617 Tube is a solid-solution, nickel-chromium-cobalt-molydenum alloy with an exceptional combination of high-temperature strength and oxidation resistance. The alloy also has excellent resistance to a wide range of corrosive environment, and it is readily formed and welded by conventional techniques.
The high nickel and chromium contents make the alloy resistant to a variety of both reducing and oxidizing media. The aluminum, in conjunction with the chromium, provides oxidation resistance at high temperatures. Solid-solution strengthening is imparted by the cobalt and molydenum.




  • Chemical Properties of Inconel 617 Tube

UNS Designation Inconel Alloy Nickel Cromium Cobalt Molybdenum Aluminium Carbon Iron Manganese Silicon Sulfur Titanium Copper Boron
N06617 617 44.5 min. 20.0 - 24.0 10.00 - 15.00 8.0 -10.0 0.8-1.5 0.05 -0.15 3.0max 1.0 max. 3.0max 0.015 max. 0.6 max 0.5 max. 0.006max





  • Application

The combination of high strength and oxidation resistance at temperatures over 1800°F makes inconel 617 tube  an attractive material for such components as ducting, combustion cans, and transition liner in both aircraft, and land based gas turbines. Because of its resistance to high-temperature corrosion, the alloy is used for catalyst-grid supports in the production of nitric acid, for heat-treating baskets, and for reduction boats in the refining of molybdenum. Inconel 617 tube also offers attractive properties for components of power-generating plants, both fossil-fueled and nuclear








  • ,Type we could offer
    AMS Number Alloy Type UNS Cross Ref. Spec Misc./Shape
    AMS 5887 Inconel 617 Nickel N06617
    AMS 5887 Bar Inconel 617 Nickel N06617 - Bar AMS 5887 Bar
    AMS 5887 Custom Tube Inconel 617 Nickel N06617 - Custom Tube AMS 5887 Custom Tube
    AMS 5887 Forging Inconel 617 Nickel N06617 - Forging AMS 5887 Forging
    AMS 5887 Ring Inconel 617 Nickel N06617 - Ring AMS 5887 Ring
    AMS 5888 Inconel 617 Nickel N06617 - Plate Inconel 617
    AMS 5889 Inconel 617 Nickel N06617
    AMS 5889 Sheet Inconel 617 Nickel N06617 - Sheet AMS 5889 Sheet
    AMS 5889 Strip Inconel 617 Nickel N06617 - Strip AMS 5889 Strip
