22.75mm Pitch Distance Pure Nickel Strip 2p 3p 4p For 21700 Battery

Place of Origin China
Brand Name DLX
Model Number ni200 Pure Nickel
Minimum Order Quantity 2kg
Price negotiable
Packaging Details Spool package with Carton box, Coil package with polybag,
Delivery Time 5-21 days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 300 tons per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Pure Nickel 200/201 Grade 200 201 N4 N6
Certificate ISO9001 Material Ni
Color Nickel Ni(min) 99%
Application Battery Pack Size Customized
M.O.Q 2KG Pitch Distance 22.75mm
Highlight

2p Pure Nickel Strip

,

21700 Battery Pure Nickel Strip

,

Battery Pack Pure Nickel Metal

Leave a Message
Product Description

22.75mm Pitch Distance Pure Nickel Strip 2p 3p 4p For 21700 Battery 0

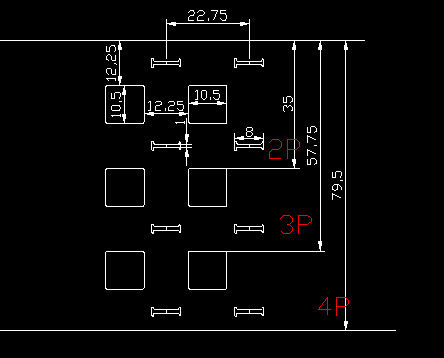

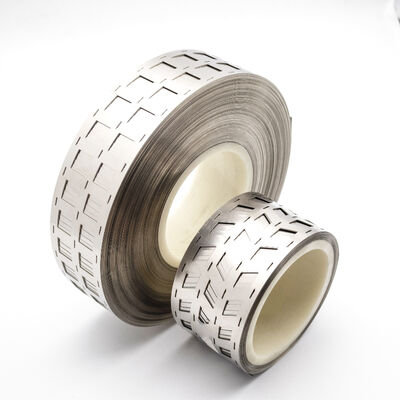

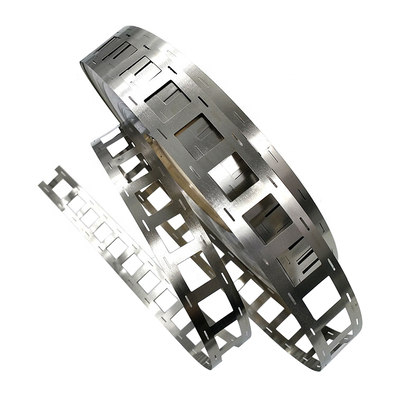

22.75mm pitch distance 2p 3p 4p pure nickel strip for 21700 battery.


  • Pure Nickel Ni200/ Ni 201 Strip

Features:21700 pure nickel strip with pitch distance 22.75mm. It is one of the main sizes for 21700 used pure nickel strip. DLX alloy is one of biggest suppliers in the market for the pure nickel strip for 21700 battery. We could offer plain and stamping strip. Pure nickel has a Nickel content of 99.6% giving it a pure nickel rating; Pure nickel will never corrode and come loose in high drain application. Pure nickel has excellent mechanical properties, high corrosion resistance in ifferent environments, and magnetic feature,high heat transfer, high conductivity, low gas volume and low vapor pressure. Pure nickel also has good spot welding properties and high tensile strength.

Pure nickel strip application:

1. Low resistance, make the battery pack more powerful, save energy.
2. Pure Nickel to make it easy welding, stable connection
3. Dood tensile and easy operate assembly.
4. shaped design, save too much work for customer to assembly battery pack.
5. High Electrical Conductivity
6. Anti-corrosive and low resistance



Grade Chemical Composition(%)
Ni+Co Cu Si Mn C Mg S P Fe
N4/201 99.9 ≤0.015 ≤0.03 ≤0.002 ≤0.01 ≤0.01 ≤0.001 ≤0.001 ≤0.04
N6/200 99.5 0.1 0.1 0.05 0.1 0.1 0.005 0.002 0.1






  • Size range

Strip:thickness is from 0.1 0.15 0.2mm and width less than 350MM.

The thickness and dimensions can be met what customers required.





Physical properties
1. Spot welding of pure nickel is good
2. The resistance of pure nickel is lower
3. Battery discharge time of pure nickel strip longer
4. The battery spot welding is stronger.



Pure nickel Functions/Applications
1. manufacturing nickel-cadmium battery
2. nickel-hydrogen battery
3. lithium cell
4. assembled battery
5. industries of electric tool and special lights
6. Superconductor Applications





CHANGZHOU DLX ALLOY COMPANY was establish in 2016,our factory established in 2002 and has got ISO9001 International Quality Management System Certificate and SGS Certificate.Our factory is becoming a high-tech company,We are professional in researching and producing special alloy material.The production process include melting,drawing,heat treatment,finishing and testing.We offer super alloy,welding wire,corrosion resistance alloy,precision alloy,FeCrAl alloy,NiCr alloy,CuNi alloy,in the form of wire,strip,ribbon,bar,tube,plate and etc.The administrative principle of our company is "intensifying inner supervision, complying with technical process and quality control, continuously adopting new technology to ensure the product quality". We employ some senior engineers to instruct technology, apply new technology and research new products. Our operation principle is "Quality first, Customer first". All the staff of our company would like to provide high quality and reasonably priced products for clients at home and abroad, and to make your products more competitive.

22.75mm Pitch Distance Pure Nickel Strip 2p 3p 4p For 21700 Battery 122.75mm Pitch Distance Pure Nickel Strip 2p 3p 4p For 21700 Battery 2
