IEC854-1 Type K Thermocouple Bare Wire For Thermocouples Sensor

Place of Origin China
Brand Name DLX
Model Number Type K Thermocouple Wire
Minimum Order Quantity 5
Packaging Details Spool package with Carton box, Coil package with polybag
Delivery Time 5-21 days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 300 tons per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name K Type Thermocouple Bare Wire Color Bright
Certificate ISO9001 Temperature Range –454 To 2,300F (–270 To 1260C)
Grade IEC854-1/3 Positive Ni-Cr
Negative Ni-Al(Si) Special Limits Of Error ± 1.1C Or 0.4%
Standard ± 2.2C% Or ±.75% Maximum Continuous Temperature 1,100C.
Highlight

Type K Thermocouple Bare Wire

,

Nickel Based Thermocouple Bare Wire

,

Aerospace Type K Thermocouple Wire

Leave a Message
Product Description

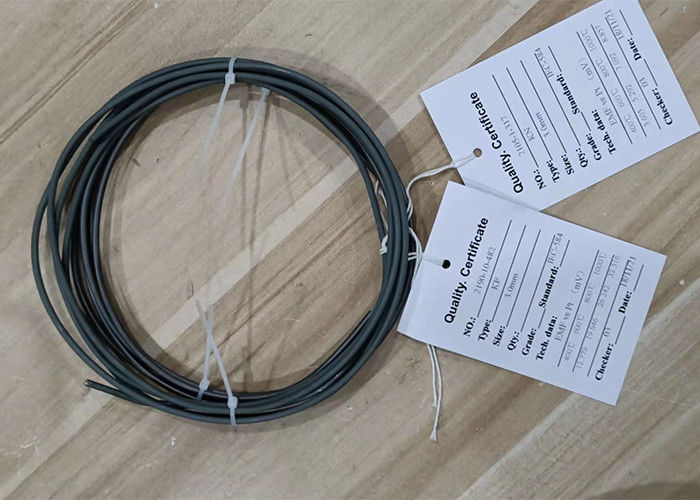

IEC854-1 Type K Thermocouple Bare Wire For Thermocouples Sensor 0


IEC854-1 Type K thermocouple bare wire for Thermocouples Sensor


  • Type K Thermocouple Wire

Type K thermocouples usually work in most applications as they are nickel based and exhibit good corrosion resistance. It is the most common sensor calibration type providing the widest operating temperature range. Due to its reliability and accuracy the Type K thermocouple is used extensively at temperatures up to 2300°F (1260°C). This type of thermocouple should be protected with a suitable metal or ceramic protection tube, especially in reducing atmospheres. In oxidizing atmospheres, such as electric furnaces, tube protection is not always necessary when other conditions are suitable; however, it is recommended for cleanliness and general mechanical protection. Type K will generally outlast Type J because the JP wire rapidly oxidizes, especially at higher temperatures.



Type K Temperature Range:

  • Thermocouple grade wire, –454 to 2,300F (–270 to 1260C)
  • Extension wire, 32 to 392F (0 to 200C)


Type K Accuracy (whichever is greater):

  • Standard: +/- 2.2C or +/- .75%
  • Special Limits of Error: +/- 1.1C or 0.4%


Consideration for bare wire type T thermocouple applications:



  • Aerospace and Composites
  • Aluminum
  • Food and Pharmaceutical
  • Forgings
  • Glass, Ceramics, Clay Tiles, Bricks
  • Heat Treating
  • Petroleum, Downhole Oil & Gas
  • Sensor Manufacturing
  • Steel
  • Utilities Power Generation

  • Thermocouple Wire
Code Wires component of the thermocouple
  +Positive leg -Negative leg
N Ni-cr-si (NP) Ni-si-magnesium (NN)
K Ni-Cr (KP) Ni-Al(Si) (KN)
E Ni-Cr (EP) Cu-Ni<constantan> (EN)
J Iron (JP) Cu-Ni<constantan> (JN)
T Copper (TP) Cu-Ni<constantan> (TN)
B Platinum  Rhodium-30% Platinum Rhodium-6%
R Platinum Rhodium-13% Platinum
S Platinum Rhodium-10% Platinum



  • ​Standards
ASTM ANSI IEC DIN BS NF JIS GOST
(American Society for Testing and Materials) E 230 (American National Standard Institute) MC 96.1 (European Standard by the International Electrotechnical Commission 584)-1/2/3 (Deutsche Industrie Normen) EN 60584 -1/2 (British Standards) 4937.1041, EN 60584 - 1/2 (Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324 (Japanese Industrial Standards) C 1602 - C 1610 (Unification of the Russian Specifications) 3044






  • Size range

Wire: 0.1 to 8.0 mm.



  • Working temperature:



Diameter/mm Long time Working Short period Working
temperature/°C temperature/°C
0.2, 0.3 150 200
0.5, 0.8 200 250
1.0, 1.2 250 300
1.6, 2.0 300 350



IEC854-1 Type K Thermocouple Bare Wire For Thermocouples Sensor 1IEC854-1 Type K Thermocouple Bare Wire For Thermocouples Sensor 2
