Monel 400 Thermal Spray Wire 0.8mm 1.2mm 1.6mm 2.4mm 3.2mm

  • Monel 400 Thermal Spray Wire 0.8mm 1.2mm 1.6mm 2.4mm 3.2mm
  • Monel 400 Thermal Spray Wire 0.8mm 1.2mm 1.6mm 2.4mm 3.2mm
Place of Origin China
Brand Name DLX
Model Number Monel 400
Minimum Order Quantity 15
Packaging Details Spool package with Carton box, Coil package with polybag
Delivery Time 5-21 days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 300 tons per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Thermal Spray Wire Grade Monel 400
Certificate ISO9001 Material Ni+Cu
Application Corrosion Protection Coating Hardness 75 – 85 HRB
Bonding Strength 27.5 – 34.5 MPa Size 0.8mm 1.2mm 1.6mm 2.4mm 3.2mm
Name Monel 400 Maximum Service Temperature 600 °C
Highlight

1.2mm Thermal Spray Wire

,

Ni Cu Material Thermal Spray Wire

,

Monel 400 Metal Spray Wire
Leave a Message
Product Description

Monel 400 Thermal Spray Wire 0.8mm 1.2mm 1.6mm 2.4mm 3.2mm 0

0.8mm 1.2mm 1.6mm 2.4mm 3.2mm Monel 400 Thermal Spray Wire

  • Thermal spray wire​

1. Introduction:



DLX alloy offers monel 400 thermal spray wire. Monel 400 wire is specifically designed for spraying in arc spray and flame spray systems. It produces well-bibded coating with excellent machineability. Monel 400 has good corrosion resistance, eapecially in sea water and caustic enviroments. Monel 400 is an austenitic Nickel-Copper Alloy (CuNi Alloy) for use in arc a and flame spray systems. The alloy produces dense, well bonding coatings resistant to high-temperature oxidation and corrosion.

Typical applications for Monel 400 are protective coatings against corrosive gases, protection against scaling of conventional low alloy steels and build-up coatings for dimensional restoration.

  • Thermal spray wire​
Item Inconel 625 Ni95Al5 45CT Monel 400 HC-276 Cr20Ni80 K500
C ≤0.05 ≤0.02 0.01-0.1 ≤0.04 ≤0.02 ≤0.08 ≤0.25
Mn ≤0.4 ≤0.2 ≤0.2 2.5-3.5 ≤1.0 ≤0.06 ≤1.5
P ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.02 ≤0.01
S ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.01
Si ≤0.15 ≤0.2 ≤0.2 ≤0.15 ≤0.08 0.75-1.6 ≤0.5
Cr 21.5-23 ≤0.2 42-46 - 14.5-16 20-23 -
Ni Rest Rest Rest 65-67 Rest Rest Rest
Cu - - - Rest - - 27-33
Mo 8.5-10 - - - 15-17 - -
Ti ≤0.4 0.4-1 0.3-1.0 2.0-3.0 - - 0.35-0.85
Al ≤0.4 4--5 - ≤0.5 - - 2.3-3.15
Fe ≤1.0 - ≤0.5 ≤1.0 4.0-7.0 - ≤1.0
Nb 3.5-4.15 - - - - ≤1.0 -
Co - - - - - - -
V - - - - ≤0.35 - -
W - - - - 3.0-4.5 - -
Impurities ≤0.50 ≤0.50 ≤0.50 ≤0.50 ≤0.50 ≤0.50 ≤0.50



  • ​Application

1 Protection against sulfuric acid environments at temperatures up to 600 °C (1100 °F) for applications such as industrial chemical crystallizers, dryers and vaporizers.

2 Corrosion protection for machine elements such as steam valves, pumps, seal rings and plungers.

3 Resists saltwater corrosion for components such as vaporizers and petrochemical crude oil distillation towers.

4 Protects immersed machine elements from saltwater corrosion, particularly for applications where a surface harder than typical galvanic coatings is required.

5 Corrosion protection for chemical and desalination plants.



  • Size range

Wire: 0.8mm 1.2mm 1.6mm 2.4mm 3.2mm.





  • Package

Products are generally supplied in standard cardboard boxes, pallets, wooden boxes. Special packaging requirements can also be accommodated. (also depend on the customers' requirements)

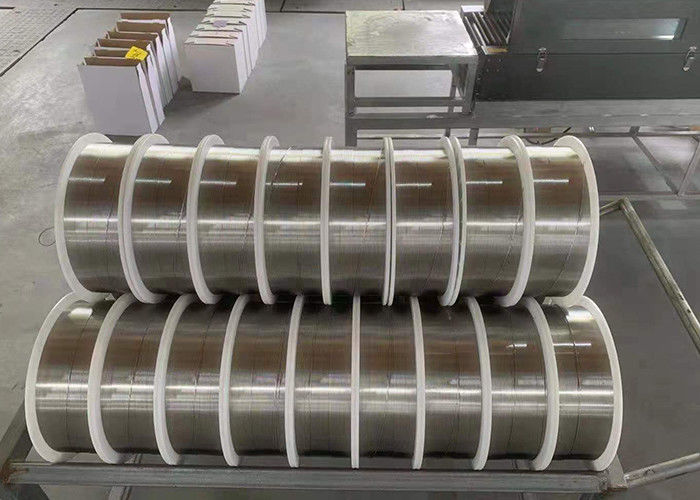

For the Thermal spray wires , we wind small size wire less than 1.6mm wires on spools. Bigger size over than 2.4mm in coils. Then put spools into cartons, Then put the cartons onto pallet or wood box.




  • Our Services

1) Free sample could be supplied for testing purpose.
2) Customized lable, packing, OEM service.
3) Mill test certificate will be provided after production.
4) Good packing methods to keep goods statable.
