Ni95al5 Tafa 75B Thermal Spray Wire 2.4 Mm for Vacuum Coating

Place of Origin China
Brand Name DLX
Model Number Ni95Al5
Minimum Order Quantity 15
Packaging Details Spool package with Carton box, Coil package with polybag
Delivery Time 5-21 days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 300 tons per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Thermal Spray Wire Grade Ni95Al5
Certificate ISO9001 Material Ni+Al
Application Vacuum Coating Coating Hardness HRB 75
Bonding Strength 68.95 N/mm2 Size 0.8mm
Name PMET 885/Ni95Al5/Tafa 75B/ MEC 885
Highlight

Tafa 75B Thermal Spray Wire

,

Ni95al5 Thermal Spray Wire

Leave a Message
Product Description

Ni95al5 Tafa 75B Thermal Spray Wire 2.4 Mm for Vacuum Coating 0


Surface Metallic 2.4 Mm Ni95al5 Tafa 75B Thermal Spray Wire From Manufacturer

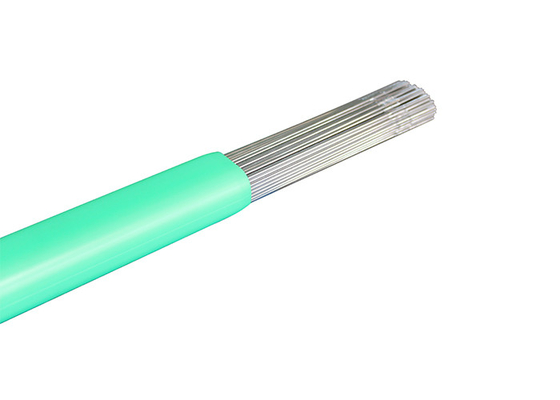

  • Thermal spray wire​

Introduction:

 2.4mm thermal spray wire which material is PMET 885/Ni95Al5/Tafa 75B/ MEC 885, was packed into a plastic box, and 5kgs per package. DLX alloy also could offer customized package like coil and could assign weight for package. Ni95Al5 Tafa 75B, Mec 855 also could be customized size and spool package. The Material MEC855 / NiAl95/5 is kind of nickel aluminum alloy for thermal spray. PMET 885/Ni95Al5/Tafa 75B/ MEC 885 is widely used as a bond coat for subsequent thermal spray topcoats and as a one-step build up material for dimensional restoration of aircraft engines. Thermal spray wire ni95al5 can be achieved on clean smooth surfaces. Roughening of the surface by machining, grit blasting or grinding can increase the bond strength up to 10,000 psi. Changzhou DLX alloy produce Ni95Al 5 wire and Ni exhibits good resistance to high temperature oxidation and abrasion, and excellent resistance to impact and bending. NiAl95/5 can be machined and ground to a finish of 5 micro inches. It is a self-bonding, one step material and is also suitable for the build-up and dimensional restoration of nickel-based alloys.



Typical Uses and Applications:
This material has proven very effective in providing long term protection to boiler tubes against high temperature sulfidation. The wrought material is highly resistant to sulfur/vanadium atmospheres up to 1800°F. Wrought material of this type has shown a 2 mil per year corrosion rate over a nine year period when used in the super heater section of boilers. Coatings of 45CT wire applied to boiler tubes have shown virtually no loss of thickness or spalling after 24 months of service (as of this writing).







  • Thermal spray wire​
Item Inconel 625 Ni95Al5 45CT Monel 400 HC-276 Cr20Ni80 K500
C ≤0.05 ≤0.02 0.01-0.1 ≤0.04 ≤0.02 ≤0.08 ≤0.25
Mn ≤0.4 ≤0.2 ≤0.2 2.5-3.5 ≤1.0 ≤0.06 ≤1.5
P ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.02 ≤0.01
S ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.01
Si ≤0.15 ≤0.2 ≤0.2 ≤0.15 ≤0.08 0.75-1.6 ≤0.5
Cr 21.5-23 ≤0.2 42-46 - 14.5-16 20-23 -
Ni Rest Rest Rest 65-67 Rest Rest Rest
Cu - - - Rest - - 27-33
Mo 8.5-10 - - - 15-17 - -
Ti ≤0.4 0.4-1 0.3-1.0 2.0-3.0 - - 0.35-0.85
Al ≤0.4 4--5 - ≤0.5 - - 2.3-3.15
Fe ≤1.0 - ≤0.5 ≤1.0 4.0-7.0 - ≤1.0
Nb 3.5-4.15 - - - - ≤1.0 -
Co - - - - - - -
V - - - - ≤0.35 - -
W - - - - 3.0-4.5 - -
Impurities ≤0.50 ≤0.50 ≤0.50 ≤0.50 ≤0.50 ≤0.50 ≤0.50



  • ​Application

(1) For vacuum coating
(2) For making valves grid, inner components of vacuum valves
(3) Components insides the electron tubes
(4) For making lead, supporting wire
(5) For Electronic components
(6) For battery production
(7) Strong base of the filter




  • Size range

Wire: 0.8mm 1.2mm 1.6mm 2.4mm 3.2mm.





  • Package

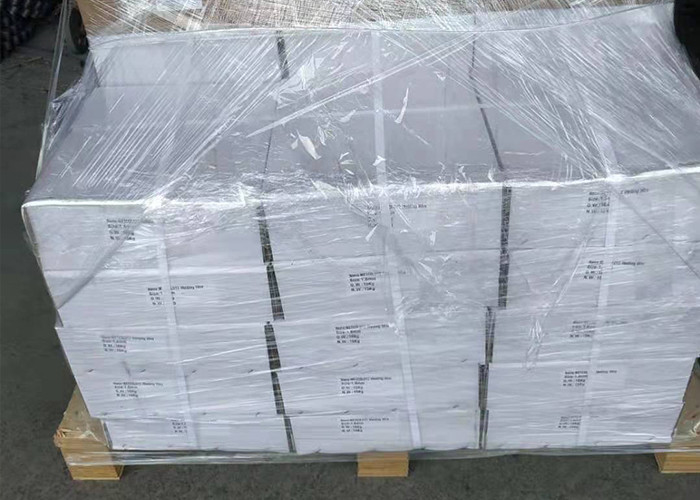

Products are generally supplied in standard cardboard boxes, pallets, wooden boxes. Special packaging requirements can also be accommodated. (also depend on the customers' requirements)

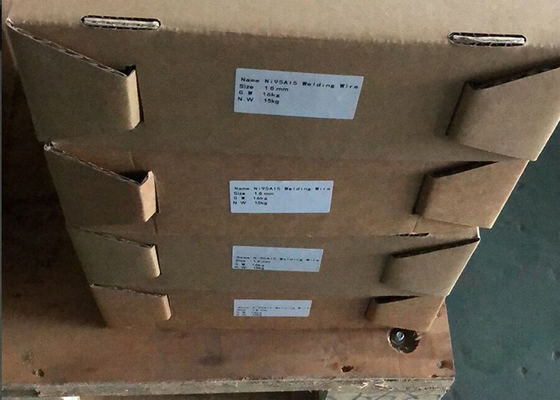

For the Thermal spray wires , we wind small size wire less than 1.6mm wires on spools. Bigger size over than 2.4mm in coils. Then put spools into cartons, Then put the cartons onto pallet or wood box.




  • Our Services

1) Free sample could be supplied for testing purpose.
2) Customized lable, packing, OEM service.
3) Mill test certificate will be provided after production.
4) Good packing methods to keep goods statable.







How can I contact with your company?
We are always ready to serve you via Email, Telephone, Fax, Skype, Whatsapp or Mobile
telephone.

What is your working time?
Monday-Saturday : 8:30AM-16:00PM (Beijing time, GMT+08.00)
We have public holiday during May.1-3, Oct.1-7 and Chinese New Year holiday . For detail,
please see our update holiday notice. During these period, if you have a demand, Please
send me an email.

Do you provide free samples?
Yes, we can provide a free sample for testing,buyer should bear all the shipping costs.

What is your payment terms?
T/T,L/C,D/A,D/P,Western Union,MoneyGram,Paypal
We are doing the best to match your demand.

What is the lead time?
Usually sample lead time is 7 days after payment has been confirmed.
Normal order is 10-30days,it depends on customers' quantity.
Anyway,we try to offer good-quality products as soon as possible.



Ni95al5 Tafa 75B Thermal Spray Wire 2.4 Mm for Vacuum Coating 1
